Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove turbocharger. See TURBOCHARGER  under AIR INDUCTION SYSTEMS. Remove adjustment rod clip and disconnect adjustment rod from wastegate crank. Remove 2 lock nuts and wastegate control solenoid. See Fig 1. To install, reverse removal procedure.

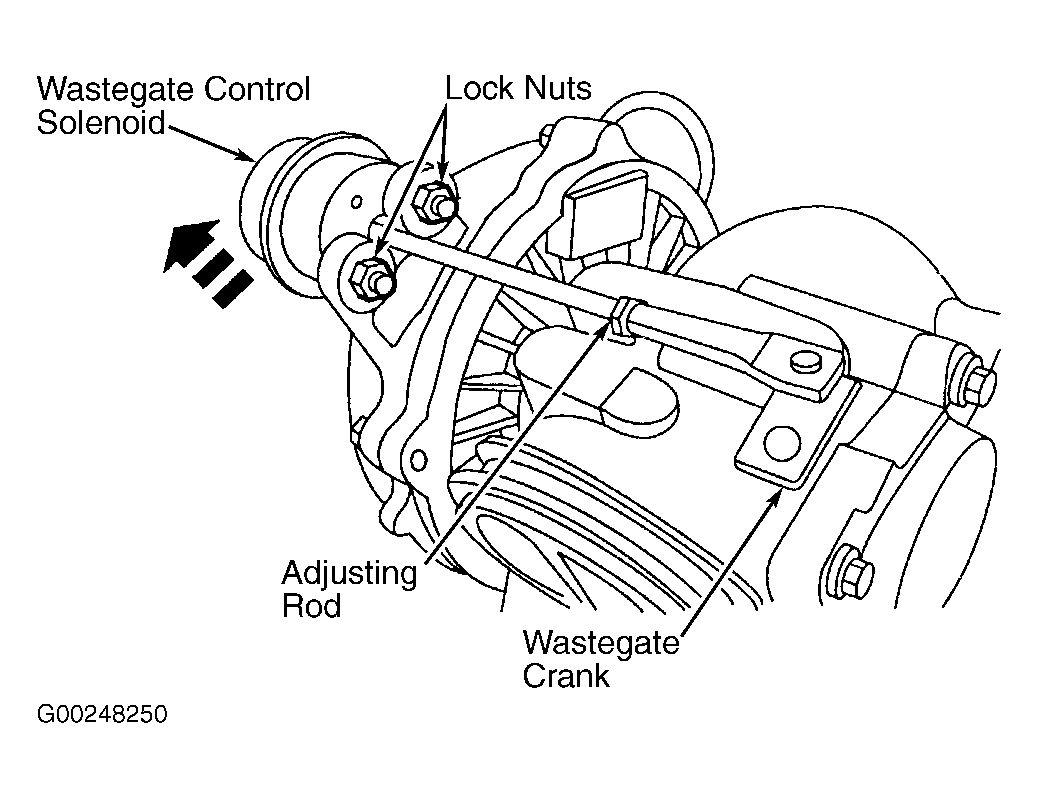

Fig 1: Removing & Installing Wastegate Control Solenoid
G00248250Courtesy of FORD MOTOR CO.
