Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio. Remove fuel pump relay cover and remove fuel pump relay. See Fig 1. To install, reverse removal procedure.

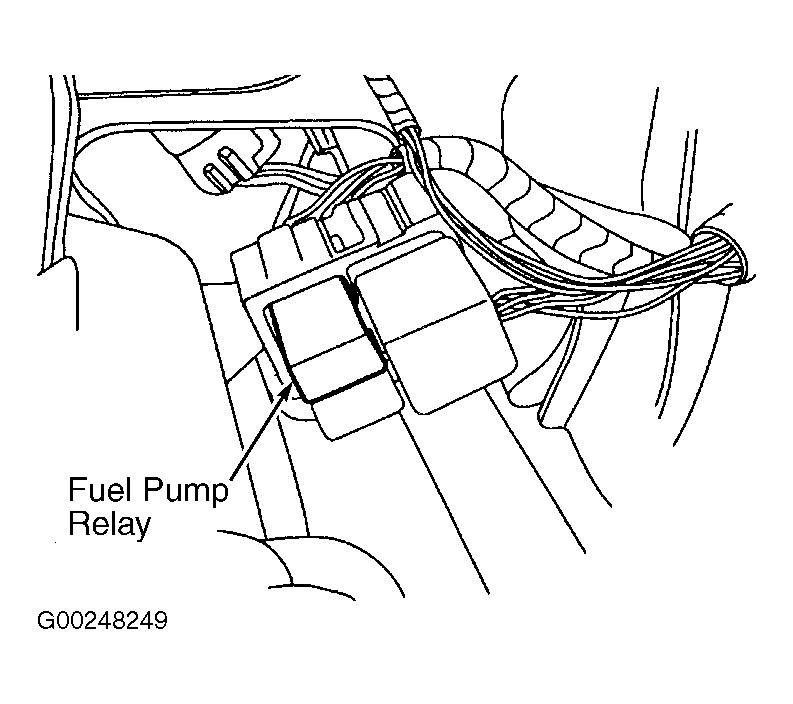

Fig 1: Removing & Installing Fuel Pump Relay
G00248249Courtesy of FORD MOTOR CO.
