Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

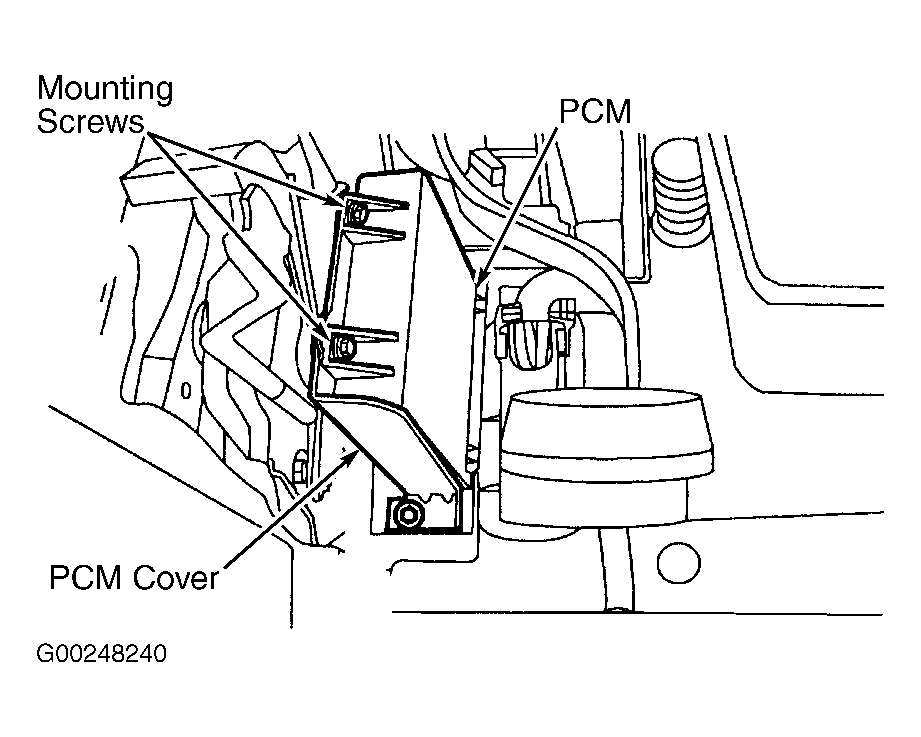

Disconnect negative battery cable. On vehicles with dual batteries, see DUAL BATTERIES under MISCELLANEOUS. Loosen PCM harness connector retaining bolt and disconnect PCM electrical connector. Remove PCM mounting screws. Remove PCM cover and PCM. See Fig 1. To install, reverse removal procedure. Tighten PCM mounting screws and PCM harness connector bolt to specification. See TORQUE SPECIFICATIONS .
