Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Red-striped wires carry 115V DC. Severe electrical shock can be received. Do not pierce.
CAUTION:
Do not pierce engine electrical wires or damage to the harness can occur. Always disconnect the ground cable prior to working on the electronic engine controls.

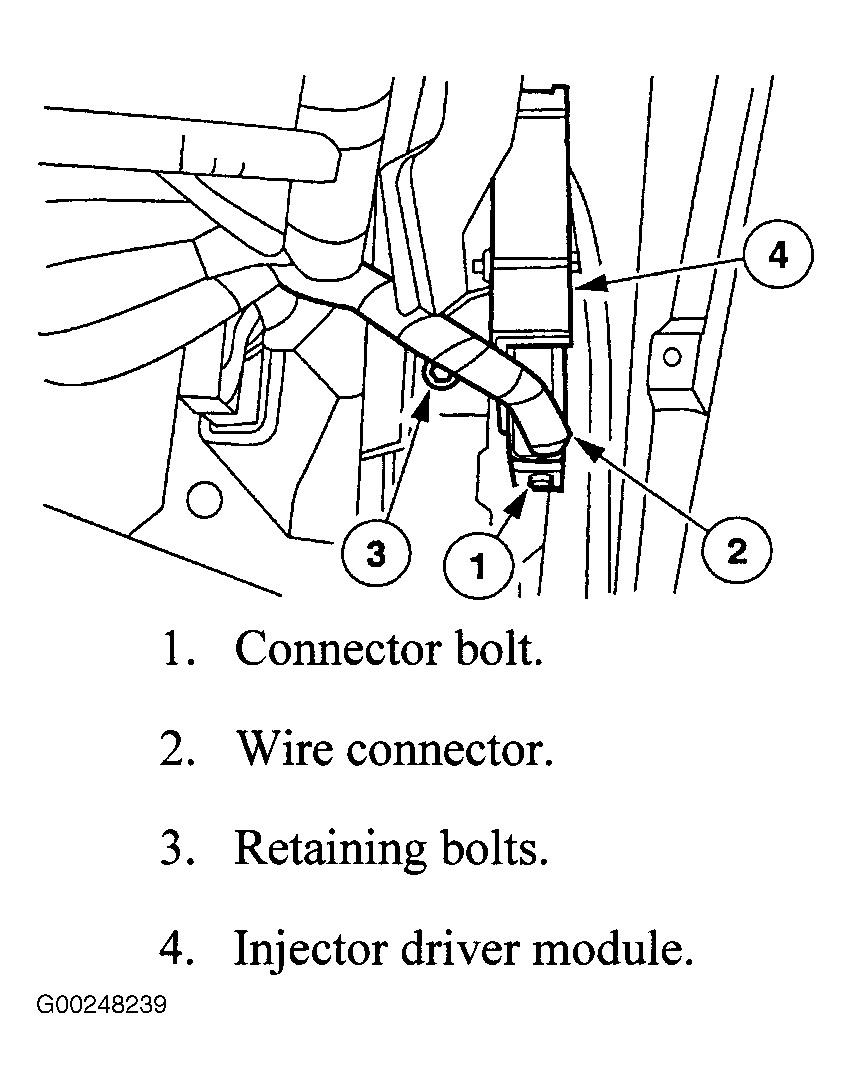

Turn ignition switch to OFF position. Raise and support vehicle. Remove driver's side front inner fender splash shield. Remove Injector Driver Module (IDM) connector retaining bolt. Unplug harness connector from IDM. Remove 2 IDM mounting bolts. Remove IDM. See Fig 1. To install, reverse removal procedure. Tighten bracket bolts and connector bolt to specification. See TORQUE SPECIFICATIONS .
