Engine Ignition Components - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

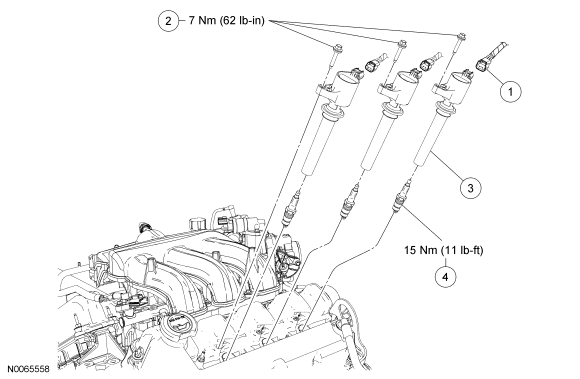

| Item |
Part Number |
Description |
| 1 |
14A464 |
RH ignition coil-on-plug electrical connector (3 required) |
| 2 |
W708833 |
RH ignition coil-to-valve cover bolts (3 required) |
| 3 |
12029 |
RH ignition coil (3 required) |
| 4 |
12405 |
RH spark plug (3 required) |
Courtesy of FORD MOTOR CO.

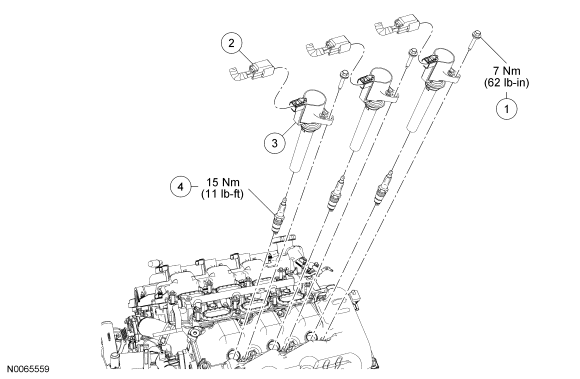

| Item |
Part Number |
Description |
| 1 |
W708833 |
LH ignition coil-to-valve cover bolt (3 required) |
| 2 |
14A464 |
LH ignition coil-on-plug electrical connector (3 required) |
| 3 |
12029 |
LH ignition coil (3 required) |
| 4 |
12405 |
LH spark plug (3 required) |
- For additional information, refer to the following procedures.
