Transmission Insulator and Retainer - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

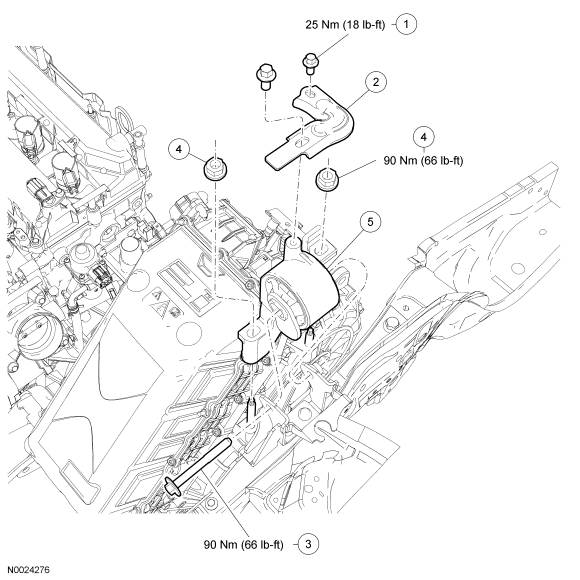

| Item | Part Number | Description |
|---|---|---|
| 1 | W710344 | Bracket bolt (2 required) |
| 2 | 6B011 | Bracket |
| 3 | W710173 | Bolt |
| 4 | W520415 | Nut (2 required) |
| 5 | B3HM000905 | Upper transmission insulator and retainer |

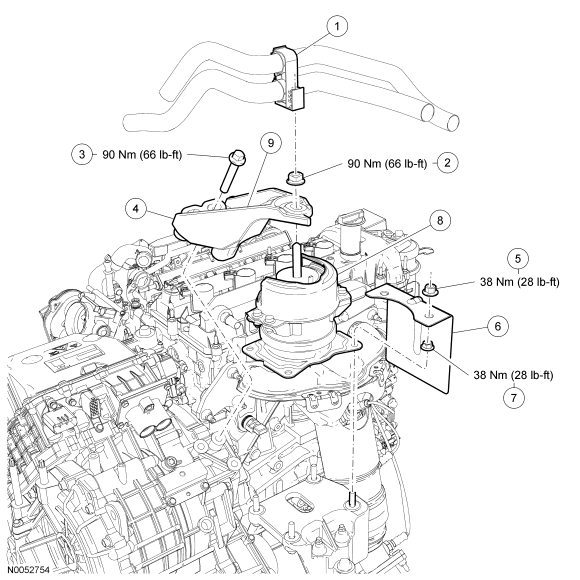

| Item | Part Number | Description |
|---|---|---|
| 1 | 18K580 | Heater hose retaining clip |
| 2 | W520415 | Mount bracket nut |
| 3 | W710186 | Rear mount bracket bolt (2 required) |
| 4 | 7G034 | Rear mount bracket |
| 5 | W707654 | Heat shield nut (2 required) |
| 6 | 3F617 | Rear mount heat shield |
| 7 | 6E037 | Rear mount nut (4 required) |
| 8 | 6E037-A | Rear mount |
| 9 | W710187 | Transaxle support bracket bolt |

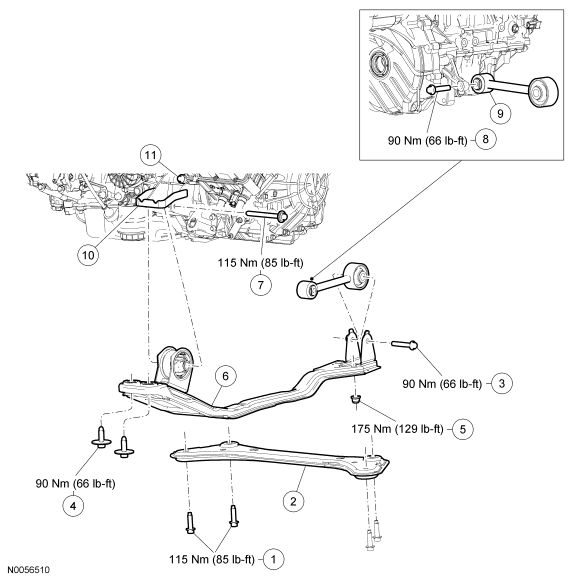

| Item | Part Number | Description |
|---|---|---|
| 1 | W500644 | Lateral support crossmember bolt (4 required) |
| 2 | 5B112-A | Lateral support crossmember support |
| 3 | W500146 | Insulator bolt |
| 4 | W706899 | Front crossmember support bolt |
| 5 | W710553 | Rear crossmember nut |
| 6 | 6P094-A | Crossmember |
| 7 | W711268 | Front insulator through bolt |
| 8 | W500044 | Rear bolt |
| 9 | 6P082 | Lower rear insulator |
| 10 | 6A060 | Transmission front bracket |
| 11 | W500321 | Transmission front bracket bolt (3 required) |
- For additional information, refer to the following procedures.
