High Pressure Oil Pump: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Install high pressure oil pressure regulator as necessary. Install high pressure oil pump with gasket. Install mounting bolts and tighten to specification. See TORQUE SPECIFICATIONS . Install drive sprocket on high pressure oil pump shaft. Before tightening drive sprocket bolt, ensure sprocket is fully seated on pump shaft.
To complete installation, reverse removal procedure. Refill high pressure oil pump reservoir with clean engine oil. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

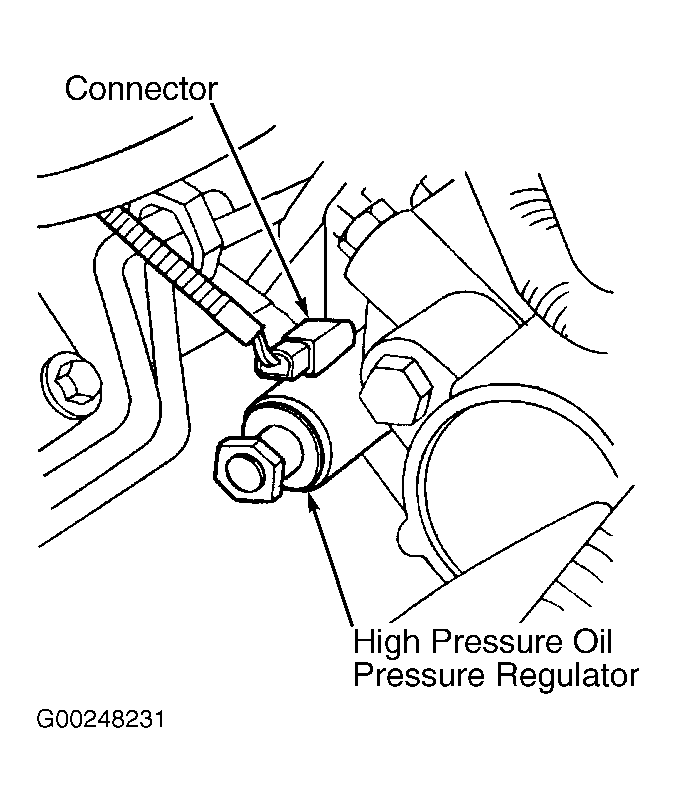

Fig 1: Removing & Installing High Pressure Oil Pressure Regulator Connector

Courtesy of FORD MOTOR CO.

Fig 2: Removing & Installing Drive Gear Cover

Courtesy of FORD MOTOR CO.

Fig 3: Removing & Installing High Pressure Oil Pump Drive Gear Bolts & Washer

Courtesy of FORD MOTOR CO.

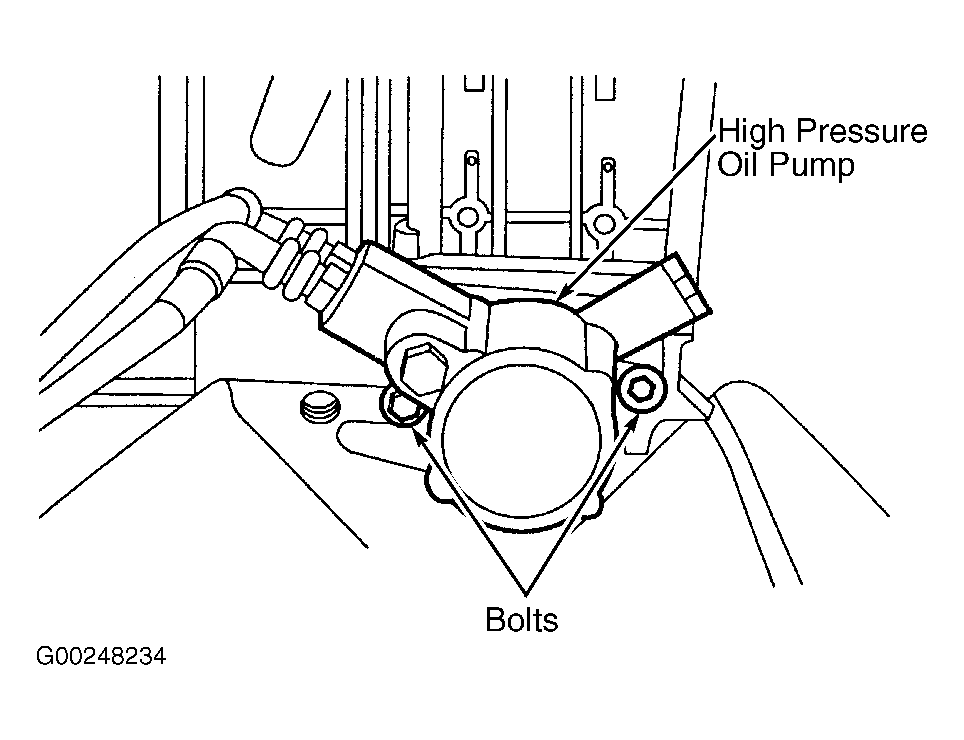

Fig 4: Removing & Installing High Pressure Oil Pump

Courtesy of FORD MOTOR CO.
