Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

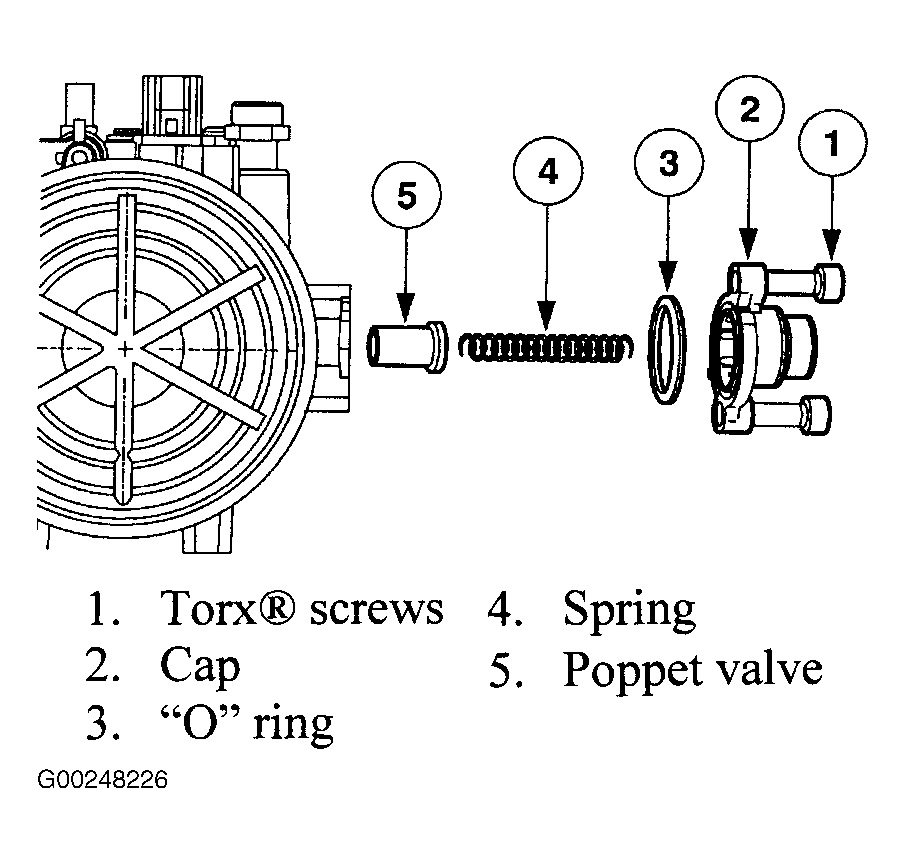

Remove air cleaner, inlet duct and resonator. See AIR INTAKE RESONATOR under AIR INDUCTION SYSTEMS. See FUEL SYSTEM PRESSURE RELEASE under FUEL SYSTEMS. Remove fuel pressure regulator Torx(R) screws and cap. Remove "O" ring, spring and poppet valve. See Fig 1 . Thoroughly clean fuel pressure regulator bore in the fuel filter/water separator. To install, reverse removal procedure.
