Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. On vehicles with dual batteries, see DUAL BATTERIES under MISCELLANEOUS. Remove air cleaner, inlet duct and resonator. See AIR INTAKE RESONATOR .
Remove intake air heater element nut and washer. Remove electrical leads, insulator and intake air heater element and copper washer. See Fig 1 .
To install, reverse removal procedure. Tighten intake air heating element to specification. See TORQUE SPECIFICATIONS .

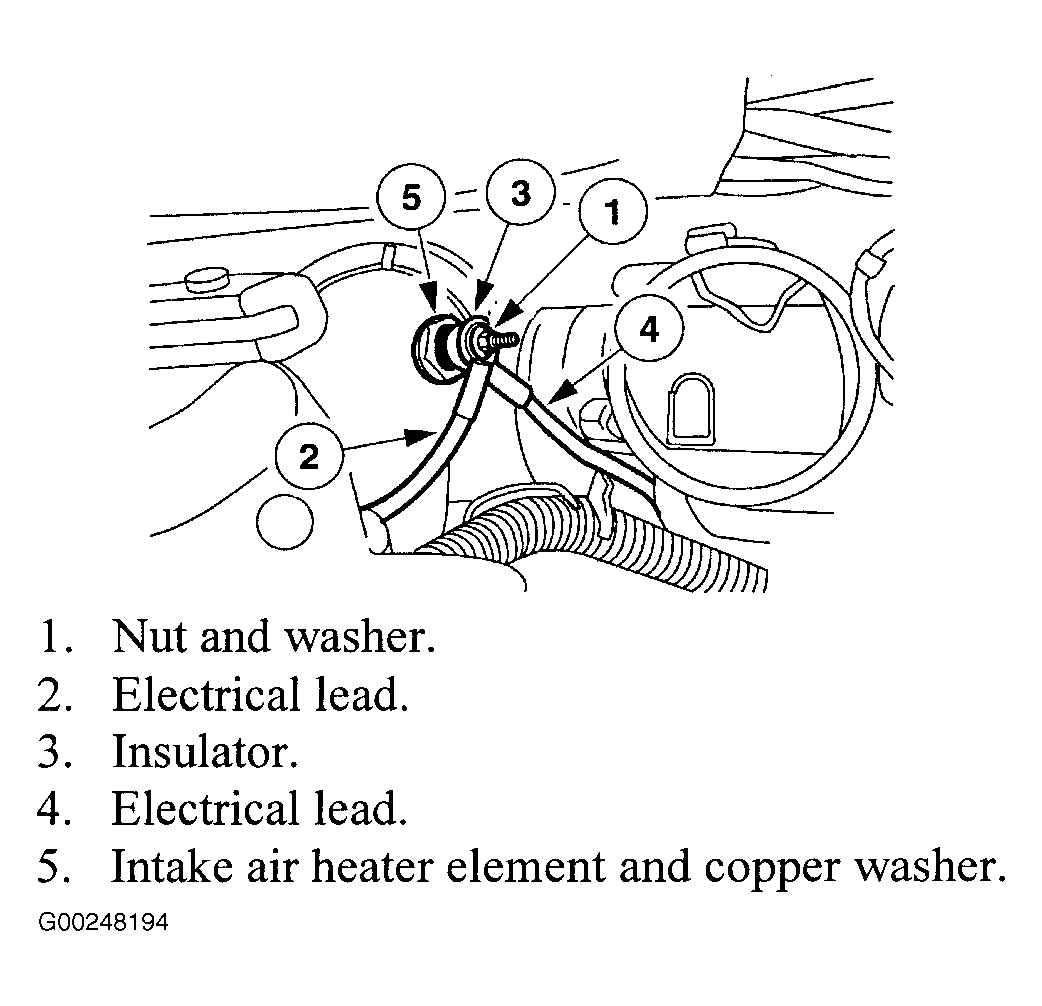

Fig 1: Removing & Installing Intake Air Heater Element

Courtesy of FORD MOTOR CO.
