Floor Duct - Rear Seat: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

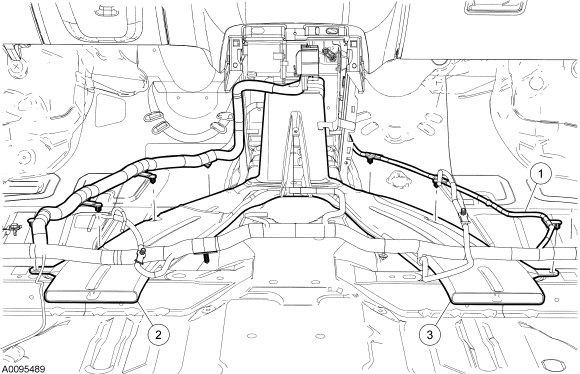

Fig 1: Exploded View Of Rear Seat Floor Duct

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14401	Wiring harness
2	-	LH floor duct (part of 18C464)
3	18C464	RH floor duct
