Air Conditioning (A/C) Compressor - 3.0L (4V): Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

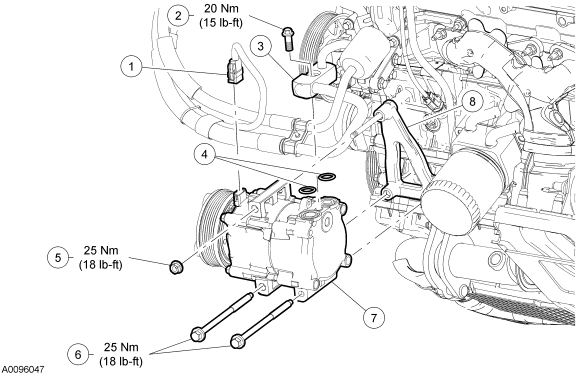

| Item | Part Number | Description |
|---|---|---|
| 1 | 19B573 | A/C clutch field coil electrical connector |
| 2 | W709787 | Compressor manifold bolt |
| 3 | 19D850 | Compressor manifold and tube assembly |
| 4 | 19E889 | O-ring (2 required) |
| 5 | N804178 | A/C compressor nut |
| 6 | 021104 | A/C compressor bolts (2 required) |
| 7 | 19D629 | A/C compressor |
| 8 | 19N624 | A/C compressor mounting bracket |
