Catalytic Converter - 3.0L RH Manifold: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

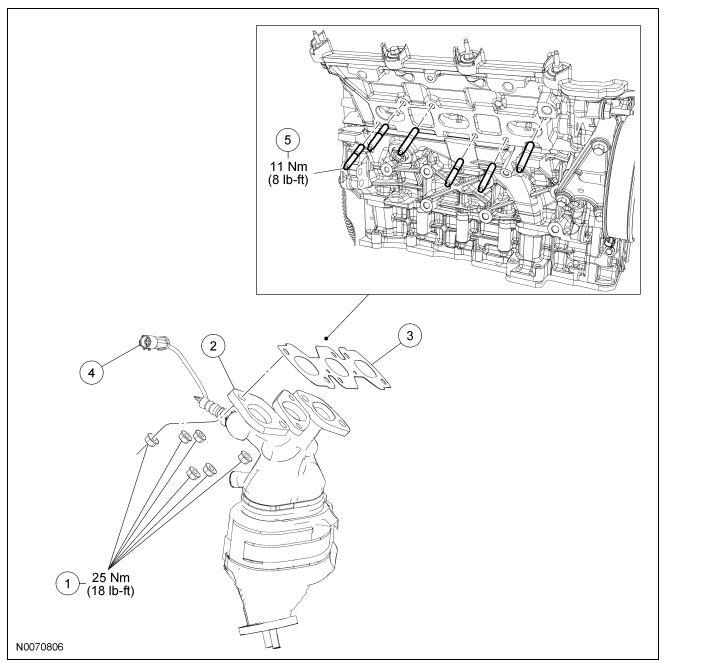

Fig 1: Replacement Components With Torque Specifications Of Catalytic Converter -- 3.0L RH Manifold With Torque Specifications
PART # AND DECRIPTION (CATALYTIC CONVERTER - 3.0L RH MANIFOLD)
| Item | Part Number | Description |
|---|---|---|
| 1 | W701706 | Catalytic converter manifold nuts (RH) (6 required) |
| 2 | 5G236 | Catalytic converter (RH) |
| 3 | 9448 | Catalytic converter manifold gasket (RH) |
| 4 | 14A464 | Heated oxygen sensor HO2S (RH) electrical connector |
| 5 | W701732 | RH catalytic converter manifold studs (6 required) |
