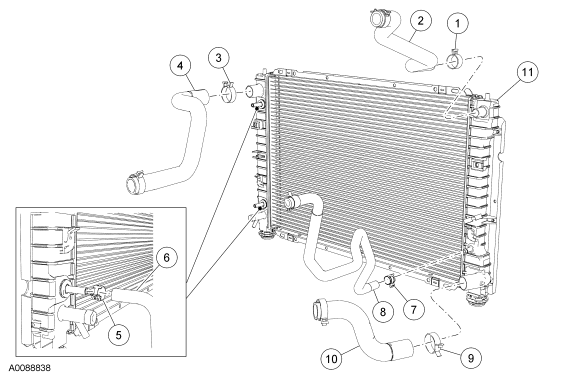

Radiator - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525961 | Clamp (position aside) |
| 2 | 8W005 | Radiator-to-degas bottle hose (position aside) |
| 3 | W527372 | Clamp (position aside) |
| 4 | 8B274 | Upper radiator hose (position aside) |
| 5 | 7C107 | Clamp (2 required) (position aside) |
| 6 | 7W063/7A031 | Transmission cooler hose (2 required) (position aside) |
| 7 | W525853 | Clamp (position aside) |
| 8 | 8C633 | Degas bottle-to-radiator hose (position aside) |
| 9 | W527372 | Clamp (position aside) |
| 10 | 8B273 | Lower radiator hose (position aside) |
| 11 | 8005 | Radiator |
