Cooling Fan Motor and Shroud: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

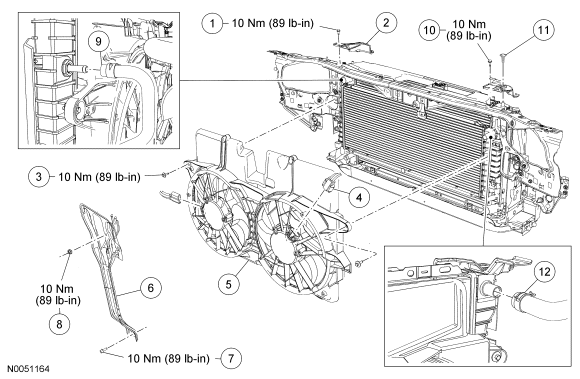

| Item | Part Number | Description |
|---|---|---|
| 1 | W707399 | Radiator bracket bolt (4 required) |
| 2 | 8B068 | Radiator bracket (2 required) |
| 3 | W503924 | Cooling fan bolt (2 required) |
| 4 | 14A464 | Cooling fan electrical connector (2 required) |
| 5 | 8600 | Cooling fan motor and shroud |
| 6 | 16B613 | Center support (position aside) |
| 7 | - | Center support lower bolt |
| 8 | W520720 | Center support nut |
| 9 | 7W063 | Transmission cooler hose (3.0L only) |
| 10 | - | Front grille bolt (2 required) |
| 11 | - | Front bumper pushpin (2 required) |
| 12 | 8W005 | Coolant recovery hose (2.3L only) |
