Removal (6.8L)

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

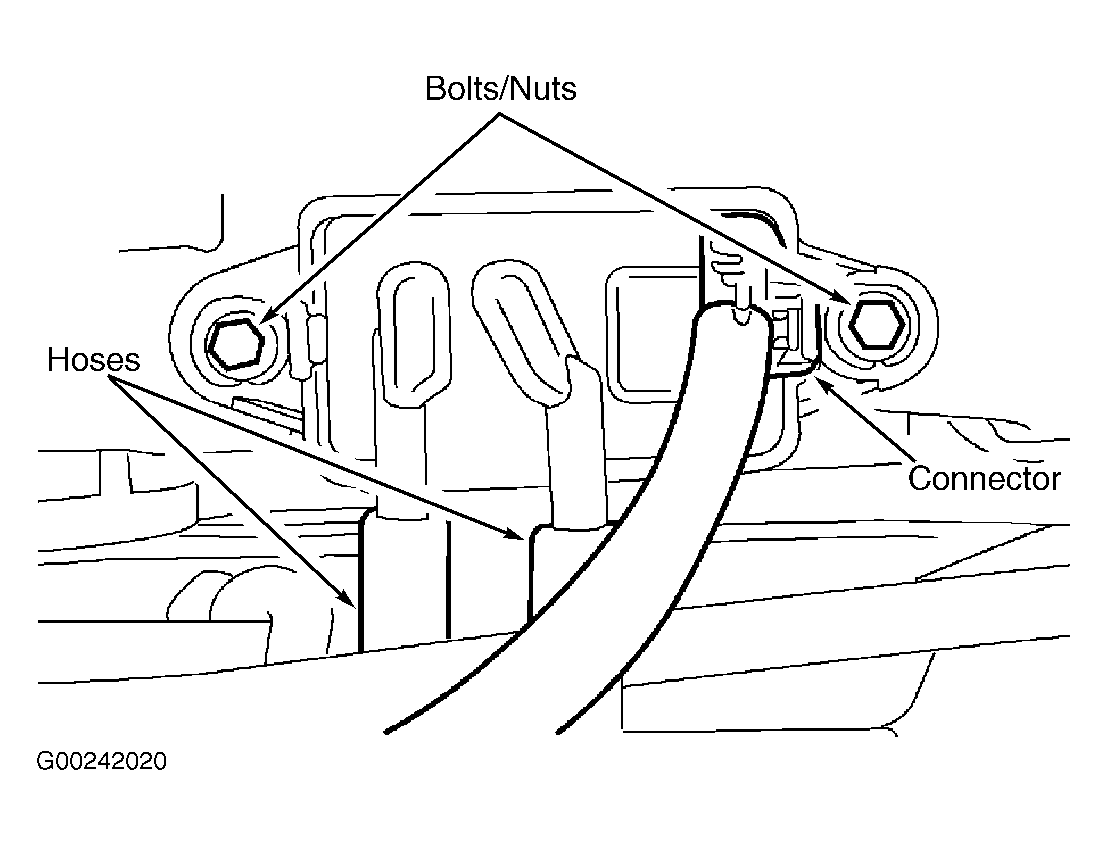

Remove engine cover. See ENGINE COVER  under MISCELLANEOUS. Remove air cleaner outlet tube. Remove bolts and position differential pressure feedback EGR out of the way. See Figure. Disconnect EGR tube fittings and position out of the way. Remove EGR valve bolts and EGR valve. Discard EGR gasket.
