Exhaust Gas RECIRCULATION Valve: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Carefully clean both sealing surfaces and install NEW EGR gasket. Install EGR and EGR mounting bolts. Tighten EGR mounting bolts in 2 steps, in proper sequence. Connect the EGR valve tube fitting and vacuum line. See TORQUE SPECIFICATIONS . Install engine cover. See ENGINE COVER  under MISCELLANEOUS.

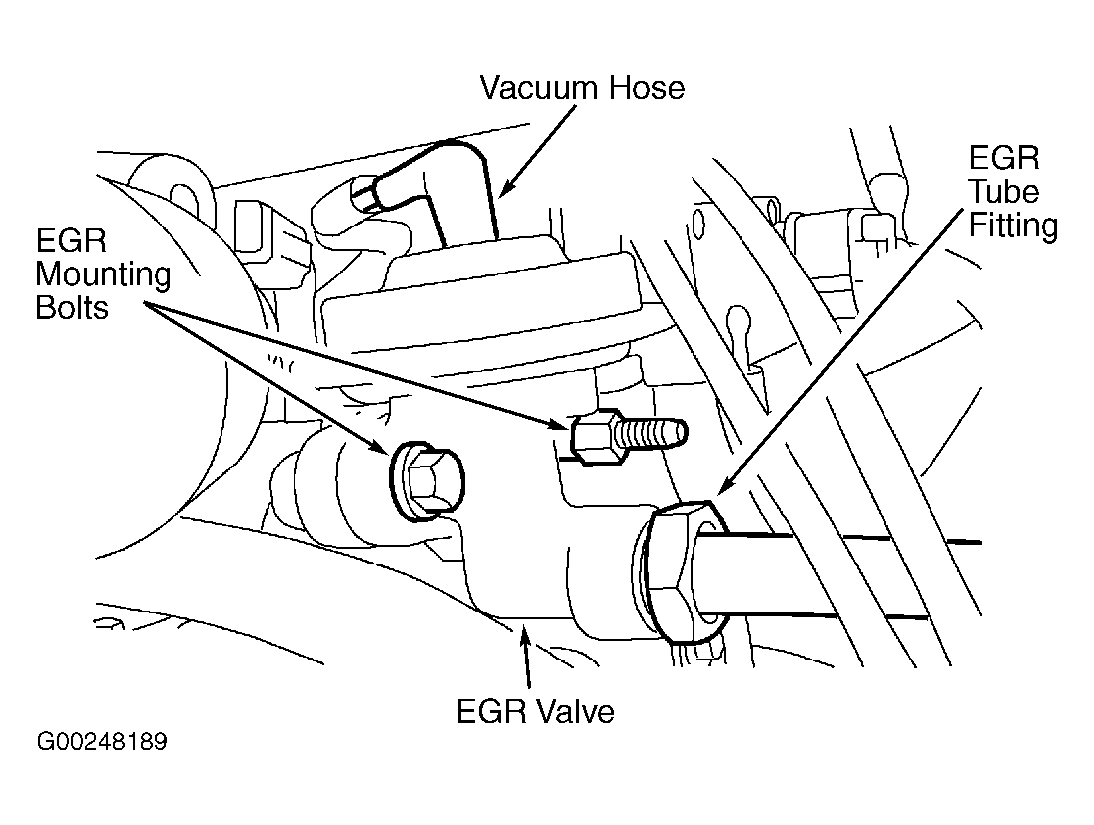

Fig 1: Removing & Installing Exhaust Gas Recirculation Valve (4.6L)
G00248189Courtesy of FORD MOTOR CO.


Carefully clean both sealing surfaces and install NEW EGR gasket. Install EGR and EGR mounting bolts. Tighten EGR mounting bolts in 2 steps, in proper sequence. Connect the EGR valve tube fitting and vacuum line. See TORQUE SPECIFICATIONS . Install engine cover. See ENGINE COVER  under MISCELLANEOUS.

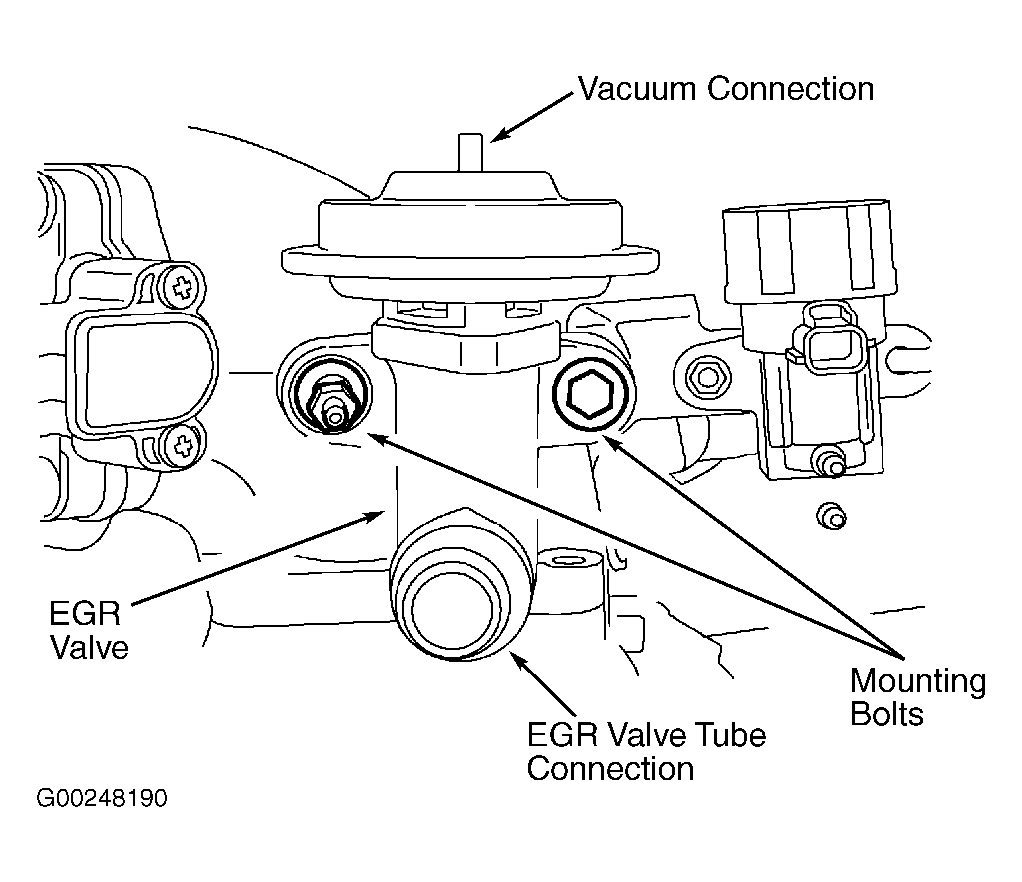

Fig 1: Removing & Installing Exhaust Gas Recirculation Valve (5.4L)
G00248190Courtesy of FORD MOTOR CO.


Carefully clean both sealing surfaces and install NEW EGR gasket. Install EGR and EGR mounting bolts. Tighten EGR mounting bolts in 2 steps, in proper sequence. Connect the EGR valve tube fitting and vacuum line. See TORQUE SPECIFICATIONS . Install engine cover. See ENGINE COVER  under MISCELLANEOUS.
