Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

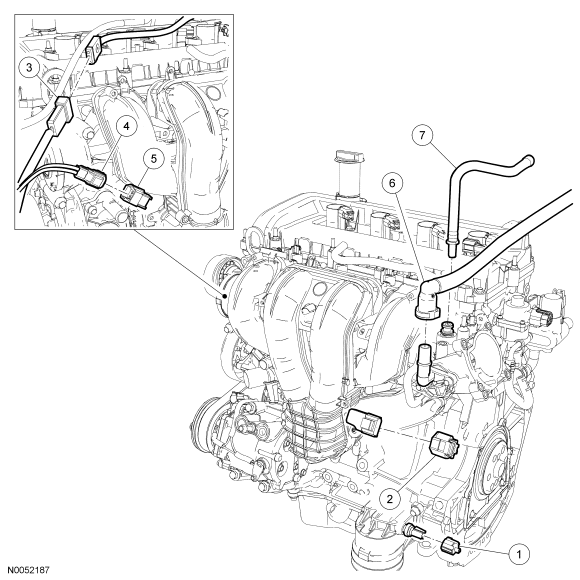

Fig 1: Exploded View Of Intake Manifold - (1 Of 2) With Torque Specifications
GF0024362Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Oil pressure sender electrical connector (part of 12B637)
2 14A464 Temperature manifold absolute pressure (TMAP) sensor electrical connector (part of 12B637)
3 6B018 Block heater electrical harness connector (if equipped)
4 14A464 Knock sensor (KS) electrical connector (male side, part of 12B637)
5 14A464 KS electrical connector (female side, part of 12B637)
6 9D289 Fuel vapor return hose
7 19D848 Vacuum supply hose

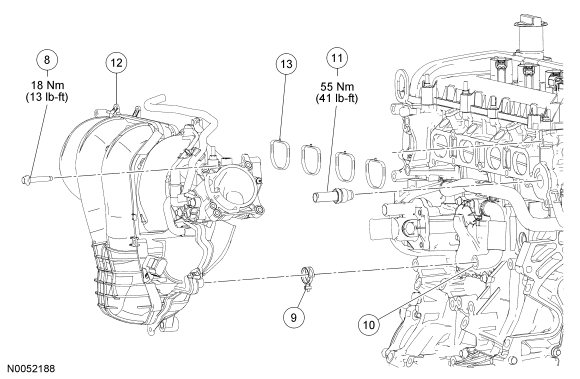

Fig 2: Exploded View Of Intake Manifold - (2 Of 2) With Torque Specifications
GF0024363Courtesy of FORD MOTOR CO.
Item Part Number Description
8 W500311 Intake manifold bolt (8 required)
9 - Crankcase vent hose clamp (part of 6758)
10 6758 Crankcase vent hose
11 9E470 Exhaust gas recirculation (EGR) tube
12 9424 Intake manifold
13 9461 Intake manifold gasket
