Valve Cover - RH: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A6 |

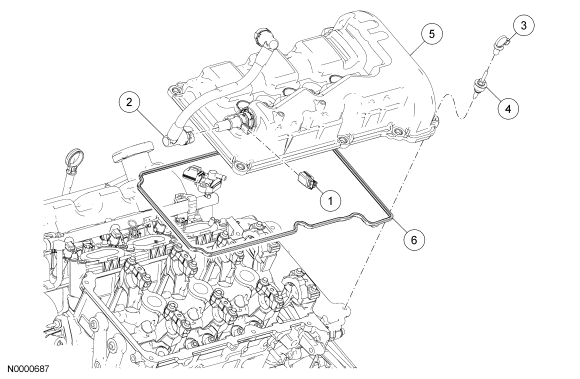

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Positive crankcase ventilation (PCV) valve electrical connector (part of 12A580) |
| 2 | 6K817 | PCV tube |
| 3 | W700497 | Wiring retainer (3 required) |
| 4 | 6C519 | Valve cover stud bolt (10 required) |
| 5 | 6582 | Valve cover |
| 6 | 6584 | Valve cover gasket |
