Valve Cover - LH: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A6 |

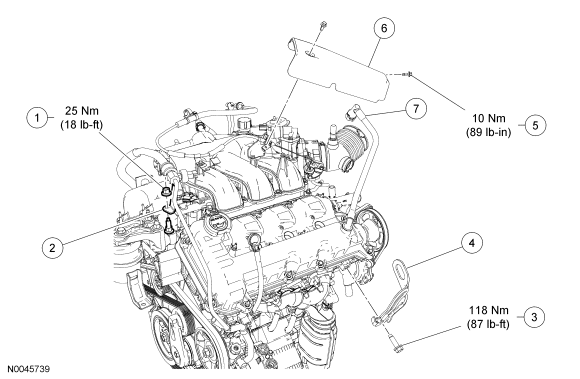

| Item | Part Number | Description |
|---|---|---|
| 1 | N621942 | Power steering pressure (PSP) tube bracket nut |
| 2 | 3A719 | PSP tube bracket |
| 3 | W701627 | Engine lift bracket bolt |
| 4 | 17A084 | Engine lift bracket |
| 5 | W702251 | Accelerator cable snow shield bolt (2 required) |
| 6 | 9E766 | Accelerator cable snow shield |
| 7 | 6853 | Crankcase ventilation tube |

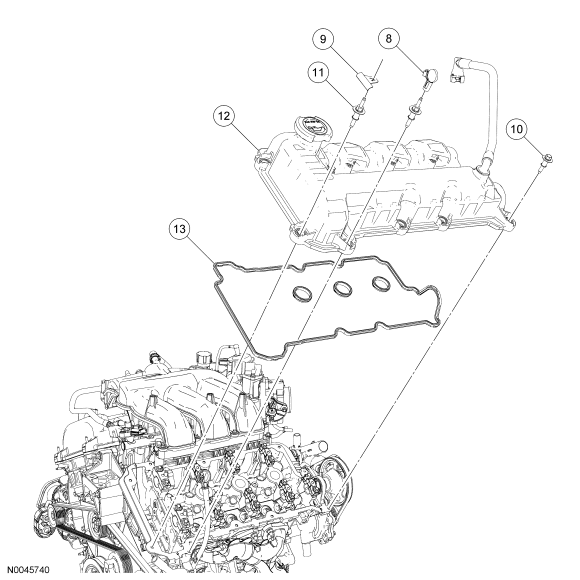

| Item | Part Number | Description |
|---|---|---|
| 8 | W700497 | Wiring retainer (2 required) (part of 9H589) |
| 9 | 13A506 | Wiring retainer (2 required) (part of 9H589) |
| 10 | 6C519 | Valve cover bolt (5 required) |
| 11 | 6C519 | Valve cover stud bolt (8 required) |
| 12 | 6A505 | Valve cover |
| 13 | 6A559 | Valve cover gasket |
