Engine Front Cover: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A6 |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

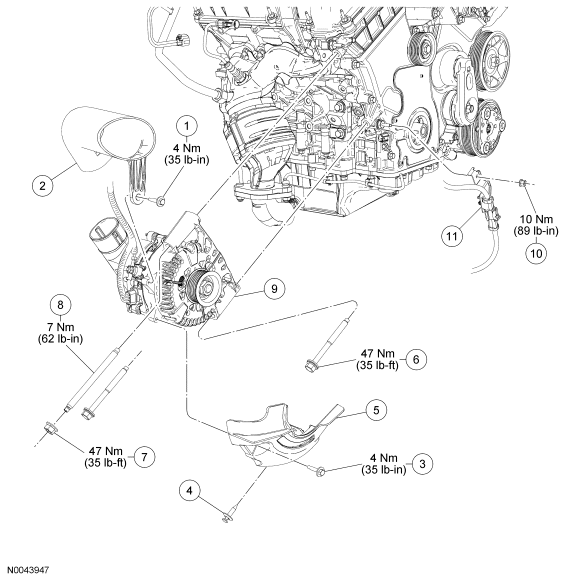

| Item | Part Number | Description |
|---|---|---|
| 1 | W505415 | Generator upper air duct bolt |
| 2 | 10C392 | Generator upper air duct |
| 3 | W505415 | Generator shield bolt |
| 4 | W705848 | Pin-type retainer |
| 5 | 10A389 | Generator shield |
| 6 | W709986 | Generator bolt (2 required) |
| 7 | W520414 | Generator stud nut |
| 8 | W710416 | Generator stud |
| 9 | 10300 | Generator |
| 10 | W701542 | Heated oxygen sensor (HO2S) electrical connector bracket nut |
| 11 | 15A024 | HO2S electrical connector bracket |

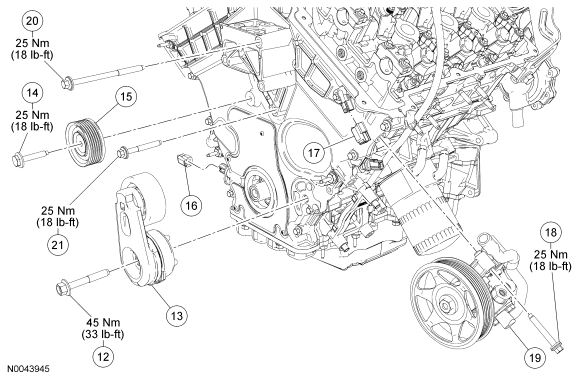

| Item | Part Number | Description |
|---|---|---|
| 12 | W701625 | Accessory drive belt tensioner bolt |
| 13 | 6B209 | Accessory drive belt tensioner |
| 14 | - | Accessory drive belt idler pulley bolt (part of 6C348) |
| 15 | 6C348 | Accessory drive belt idler pulley |
| 16 | 14A464 | Crankshaft position (CKP) sensor electrical connector (part of 9H589) |
| 17 | 14A464 | Camshaft position (CMP) sensor electrical connector (part of 9H589) |
| 18 | W701656 | Power steering pump bolt (3 required) |
| 19 | 3A696 | Power steering pump |
| 20 | W708221 | Engine front cover bolt (3 required) |
| 21 | W708222 | Engine front cover bolt (3 required) |

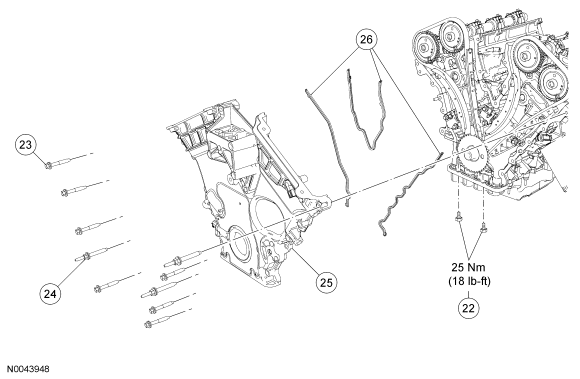

| Item | Part Number | Description |
|---|---|---|
| 22 | W709678 | Oil pan-to-front cover bolts (2 required) |
| 23 | W701525 | Engine front cover bolt (7 required) |
| 24 | W710030 | Engine front cover stud bolt (3 required) |
| 25 | 6019 | Engine front cover |
| 26 | - | Engine front cover gasket (3 required) |
