Valve Cover: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

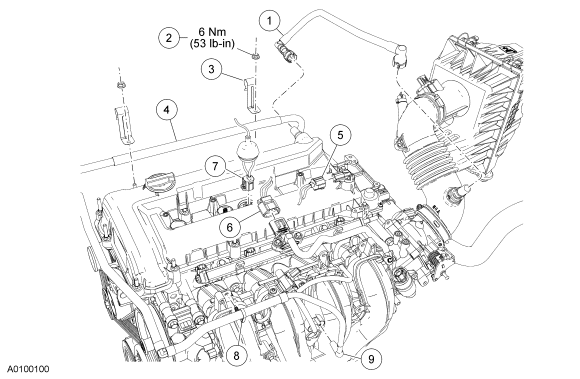

Fig 1: Exploded View Of Valve Cover - (1 Of 2) With Torque Specifications
GF0024065Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6853 Crankcase vent hose
2 W520412 Coolant vent tube bracket nut (2 required)
3 - Coolant vent tube bracket (2 required) (part of 3A719)
4 3A719 Coolant vent tube
5 14A464 Camshaft position (CMP) sensor electrical connector (part of 12B637)
6 14A464 Fuel rail pressure and temperature sensor electrical connector (part of 12B637)
7 14A464 Cylinder head temperature (CHT) sensor electrical connector (part of 12B637)
8 - Vacuum tube retainer (part of 9E498)
9 9E498 Vacuum tube

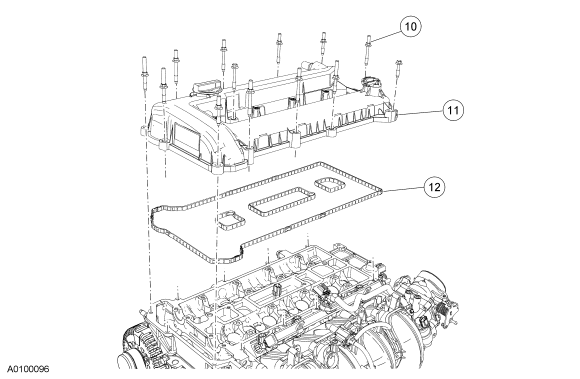

Fig 2: Exploded View Of Valve Cover - (2 Of 2) With Torque Specifications
GF0024066Courtesy of FORD MOTOR CO.
Item Part Number Description
10 W500215 Valve cover retainer (14 required)
11 6582 Valve cover
12 6584 Valve cover gasket
