Lower End Components - Exploded View

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

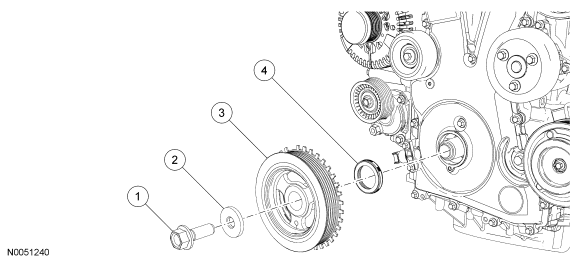

Fig 1: Exploded View Of Crankshaft Pulley and Crankshaft Front Oil Seal
GF0024068Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6K340 Crankshaft pulley bolt
2 - Crankshaft pulley washer (part of 6K340)
3 6316 Crankshaft pulley
4 6700 Crankshaft front seal

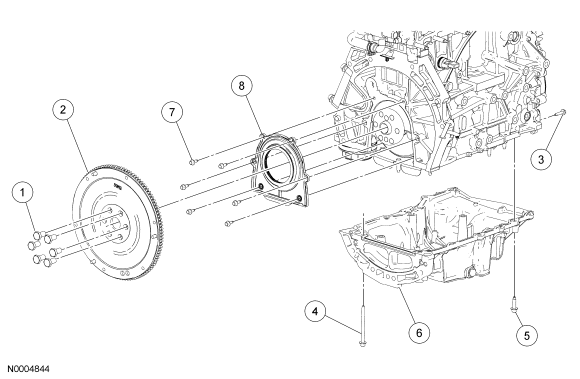

Fig 2: Exploded View Of Flexplate, Flywheel and Crankshaft Rear Oil Seal
GF0024069Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6379 Flexplate or flywheel bolt (6 required)
2 6477 Flexplate or flywheel
3 W500215 Engine front cover bolt (4 required)
4 W706284 Oil pan bolt (2 required)
5 W500224 Oil pan bolt (11 required)
6 6675 Oil pan
7 W500212 Crankshaft rear oil seal with retainer plate bolt (6 required)
8 6K318 Crankshaft rear oil seal with retainer plate
  1. For additional information, refer to the following procedures.
