Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

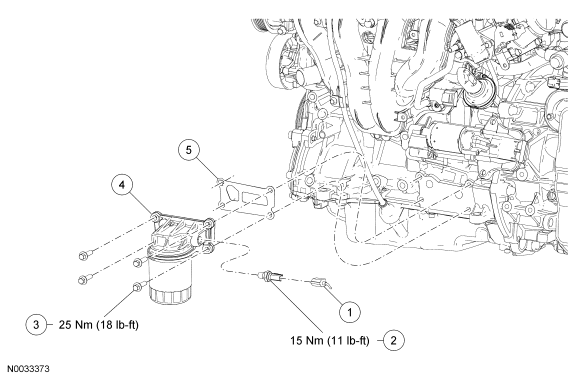

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Oil pressure sender electrical connector (part of 12B637) |
| 2 | 9278 | Oil pressure sender |
| 3 | W500225 | Oil filter adapter bolt (4 required) |
| 4 | 6884 | Oil filter adapter |
| 5 | 6A636 | Oil filter adapter gasket |
NOTE:
Automatic transmission shown, manual transmission similar.

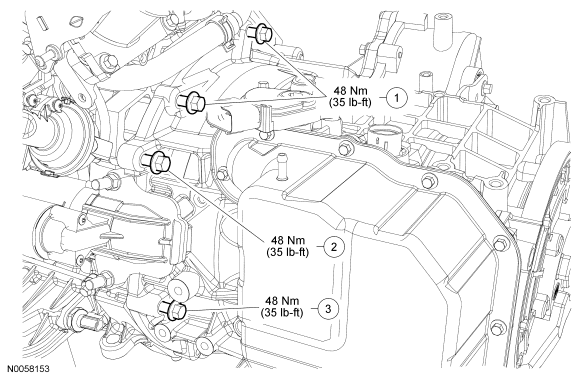

Fig 2: Exploded View Of Bellhousing-To-Engine Bolts - Front Wheel Drive FWD Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W500121 | Upper bellhousing-to-engine bolts |
| 2 | W500121 | Front lower bellhousing-to-engine bolt |
| 3 | W500125 | Front lower bellhousing-to-engine bolt |

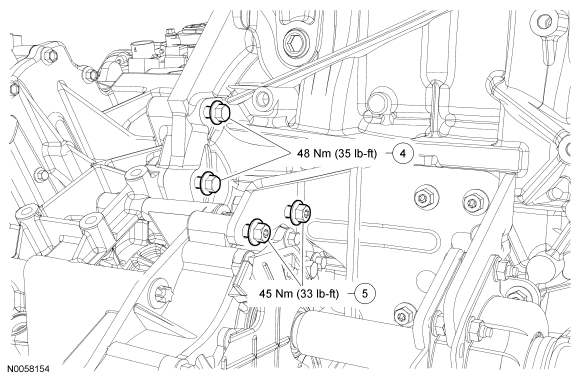

Fig 3: Exploded View Of Bellhousing-To-Engine Bolts & Power Transfer Unit PTU Bolts - All Wheel Drive AWD Vehicles With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 4 | W500125 | Rear lower engine-to-bellhousing bolts |
| 5 | W707386 | Upper engine bracket-to-power transfer unit (PTU) bolts |

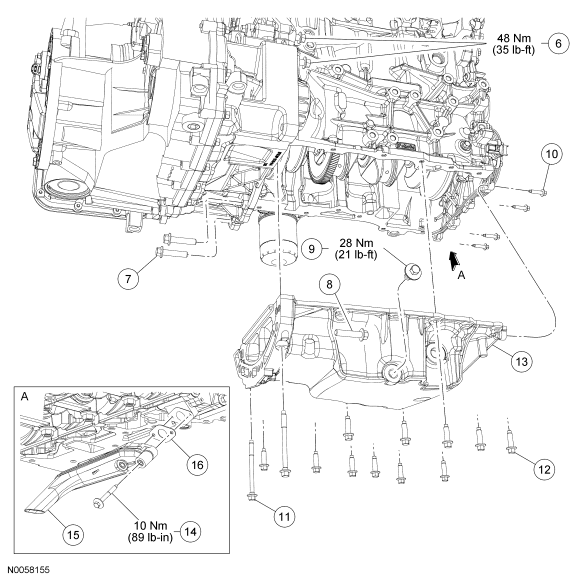

| Item | Part Number | Description |
|---|---|---|
| 6 | W500120 | Rear lower engine-to-bellhousing bolts |
| 7 | W500121 | Bellhousing-to-oil pan bolt (2 required) |
| 8 | W500121 | Oil pan-to-bellhousing bolt (2 required) |
| 9 | 6730 | Oil pan drain plug |
| 10 | W500215 | Engine front cover-to-oil pan bolt (4 required) |
| 11 | W706284 | Oil pan bolt (2 required) |
| 12 | W500224 | Oil pan bolt (11 required) |
| 13 | 6675 | Oil pan |
| 14 | W706282 | Oil pump screen and pickup tube bolt (2 required) |
| 15 | 6622 | Oil pump screen and pickup tube |
| 16 | 6625 | Oil pump screen and pickup tube gasket |

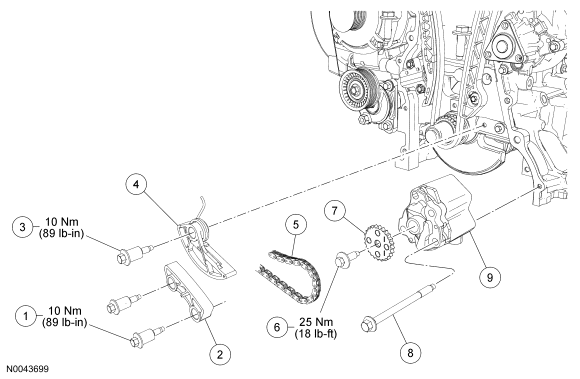

| Item | Part Number | Description |
|---|---|---|
| 1 | W703651 | Oil pump drive chain guide shoulder bolt (2 required) (early build) |
| 2 | 6M256 | Oil pump drive chain guide (early build) |
| 3 | W703651 | Oil pump drive chain tensioner shoulder bolt |
| 4 | 6C271 | Oil pump drive chain tensioner |
| 5 | 6A895 | Oil pump drive chain |
| 6 | W704397 | Oil pump sprocket bolt |
| 7 | 6652 | Oil pump sprocket |
| 8 | W703647 | Oil pump bolt (4 required) |
| 9 | 6600 | Oil pump |
- For additional information, refer to the following procedures.
