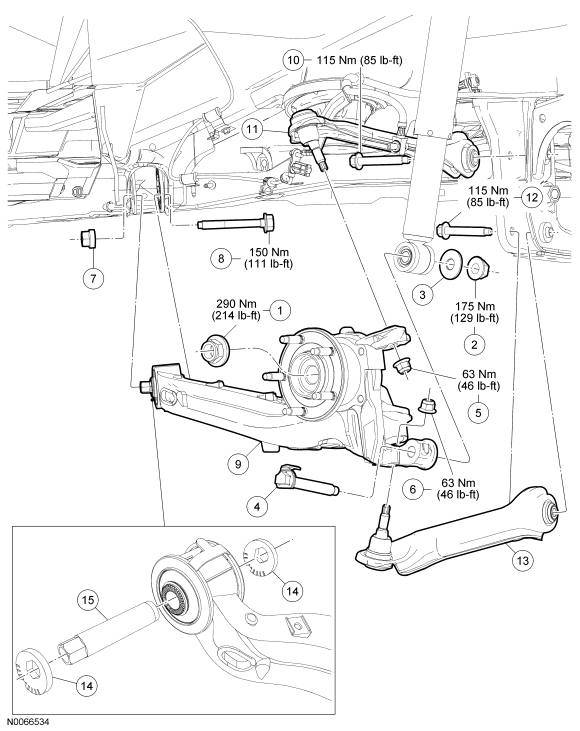

Rear Suspension - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705967 | Wheel hub nut (all wheel drive [AWD] only) |
| 2 | W520517 | Lower shock absorber nut |
| 3 | W710426 | Washer |
| 4 | W706874 | Lower shock absorber bolt |
| 5 | W705606 | Upper ball joint nut |
| 6 | W705606 | Lower ball joint nut |
| 7 | 5B677 | Cam nut |
| 8 | W710205 | Wheel knuckle bolt |
| 9 | 5B731 LH/ 5B730 RH | Wheel knuckle |
| 10 | W707646 | Upper arm inner bolt |
| 11 | 5B673 LH/ 5B672 RH | Upper arm |
| 12 | W707646 | Lower arm inner bolt |
| 13 | 5B675 LH/ 5B674 RH | Lower arm |
| 14 | - | Cam adjusters (part of 5B677) |
| 15 | 5B676 | Cam sleeve |
- For additional information, refer to the following procedures.
