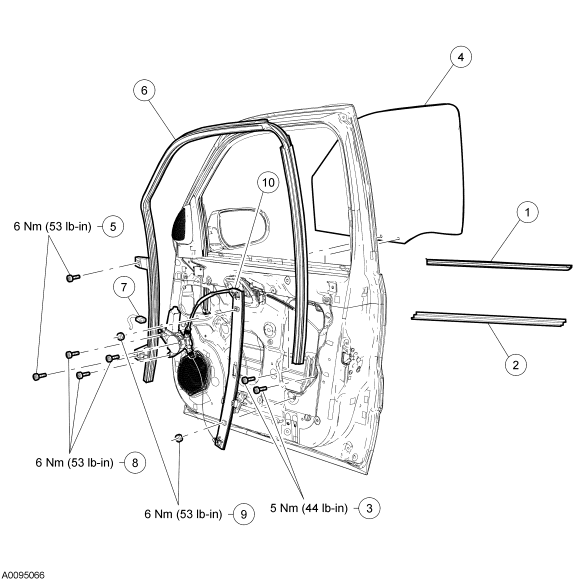

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 21116 | Exterior door glass weatherstrip |
| 2 | 22290 | Interior door glass weatherstrip |
| 3 | W707195-S439 | Front door window glass screws (2 required) |
| 4 | 21410 | Front door window glass |
| 5 | W500213-S309 | Front door glass top run bolts (2 required) |
| 6 | 21548 | Front door glass top run |
| 7 | - | Window motor electrical connector |
| 8 | W701753-S437 | Window regulator and motor bolts (3 required) |
| 9 | W520111-S437 | Window regulator and motor nuts (2 required) |
| 10 | 23200 | Window regulator and motor |
- For additional information, refer to the following procedures.
