Automatic Transmission
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
The automatic transmission fluid cooling system consists of:
- an in-tank fluid cooler inlet tube.
- a non-repairable in-tank radiator transmission fluid cooler.
- an in-tank fluid cooler outlet tube.
- separate fluid cooler hoses.
- an oil-to-air (OTA) transmission fluid cooler.
- a fluid cooler return tube.
- hose clamps.
- a remote mount fluid filter and bracket.
The transmission fluid flows from the transmission front fitting, to the in-tank transmission fluid cooler, to the OTA transmission fluid cooler and returns to the transmission rear fitting.
CAUTION:
Do not attempt to backflush and clean the OTA transmission fluid cooler. Install a new OTA transmission fluid cooler as part of a transmission overhaul or exchange. Failure to follow these directions can result in transmission damage.
For fluid cooler flow testing and backflushing and cleaning procedures, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT article.

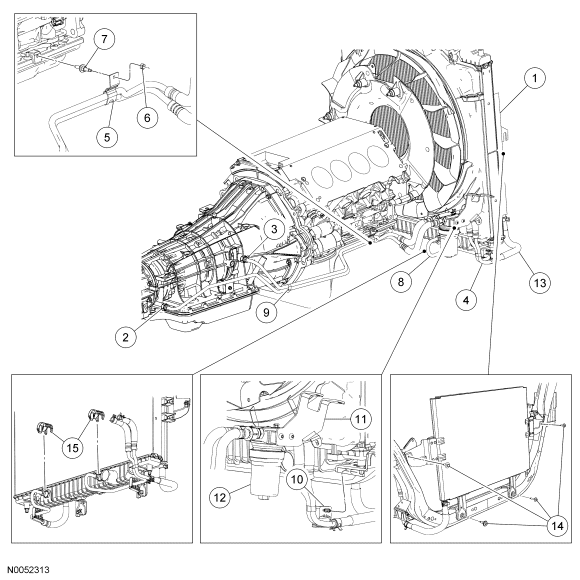

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H189 | Oil-to-air (OTA) transmission fluid cooler and hose assembly |
| 2 | 7H420 | Fluid inlet cooler tube |
| 3 | 7H420 | Fluid outlet cooler tube |
| 4 | 7F112 | Filter return inlet |
| 5 | 7N291 | Fluid cooler tube bracket |
| 6 | W704723 | Nut |
| 7 | W701815 | Stud |
| 8 | 7B028 | Fluid cooler inlet tube |
| 9 | W707781 | C-clip |
| 10 | 7N291 | Cooler tube clip |
| 11 | 7B020 | Remote mount filter base |
| 12 | 7B155 | Fluid filter |
| 13 | 7890 | Hose assembly |
| 14 | - | Bolt and washer assembly |
| 15 | - | Secondary latches |
