Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

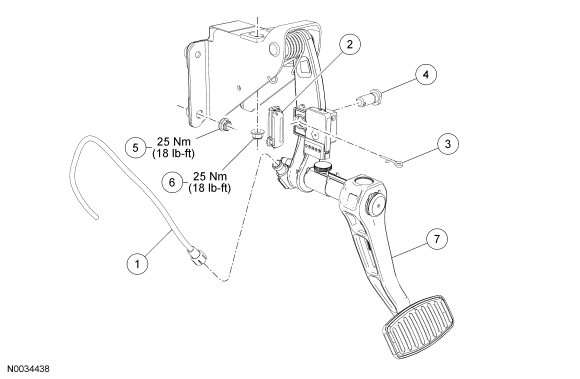

Adjustable pedal shown, fixed pedal similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Adjustable brake pedal drive cable |
| 2 | - | Brake pedal cotter pin cover |
| 3 | 380699 | Brake pedal cotter pin |
| 4 | 2474 | Brake pedal pin |
| 5 | N620481 | Brake pedal-to-booster nut (4 required) |
| 6 | N620481 | Brake pedal-to-column brace nut (2 required) |
| 7 | 2455 | Brake pedal and bracket |
