Parking Brake Cable - RH: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

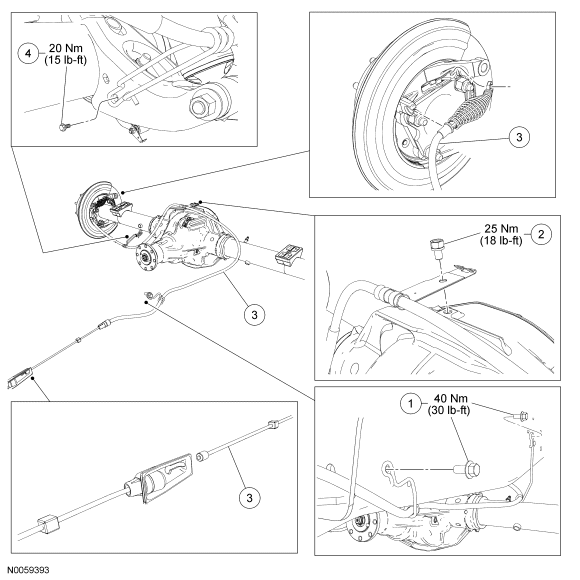

Fig 1: Identifying Parking Brake Cable RH With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505273	RH parking brake cable wire form bracket bolts
2	57632	Parking brake cable-to-differential bracket bolt
3	2A635	RH parking brake cable
4	W505264	Parking brake cable-to-shock mount bracket bolt
