Parking Brake Cable - LH: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: F-250/350 shown, F-450/550 similar.

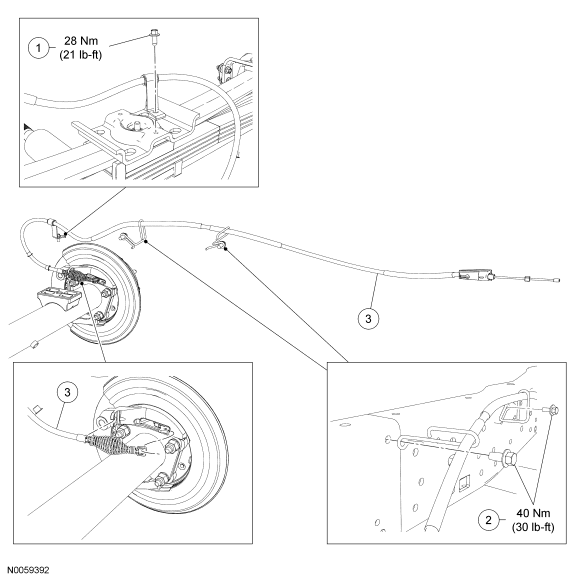

Fig 1: Identifying Parking Brake Cable LH With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505261	LH parking brake-to-spring U-bolt plate bolt
2	W505273	LH parking brake cable wire form bracket bolts
3	2A809	LH parking brake cable
