Valve Body Assembly (4R70W): Removal
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Lincoln Navigator, 2003 Lincoln Blackwood, 2003 Ford RV Cutaway, 2003 Ford Pickup, and 2003 Ford F550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the transmission fluid and remove the transmission fluid pan and filter. See DRAINING & REFILLING under LUBRICATION.
- Disconnect the molded lead frame from the solenoids. Disconnect the shift solenoid shift solenoids "A" and "B" (1). See Figure. Disconnect the Torque Converter Clutch (TCC) solenoid (2).
- Disconnect the Electronic Pressure Control (EPC) solenoid (3). Disconnect the bulkhead inter-connector (4). Remove the manual control valve detent lever spring bolt (1). See Figure.

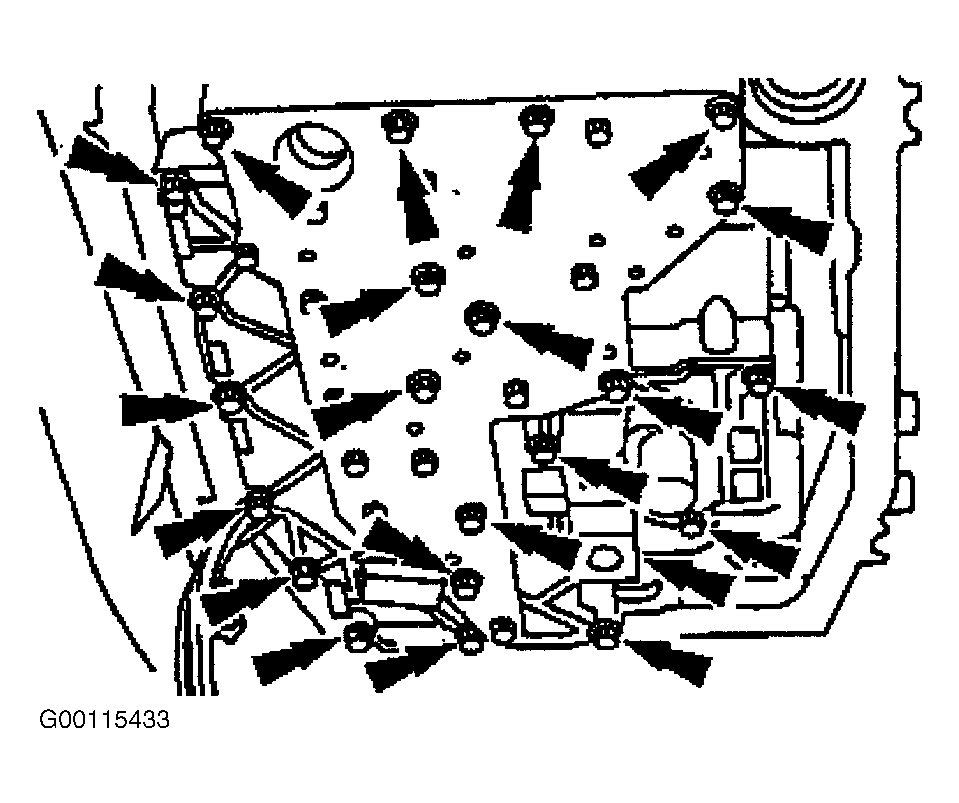

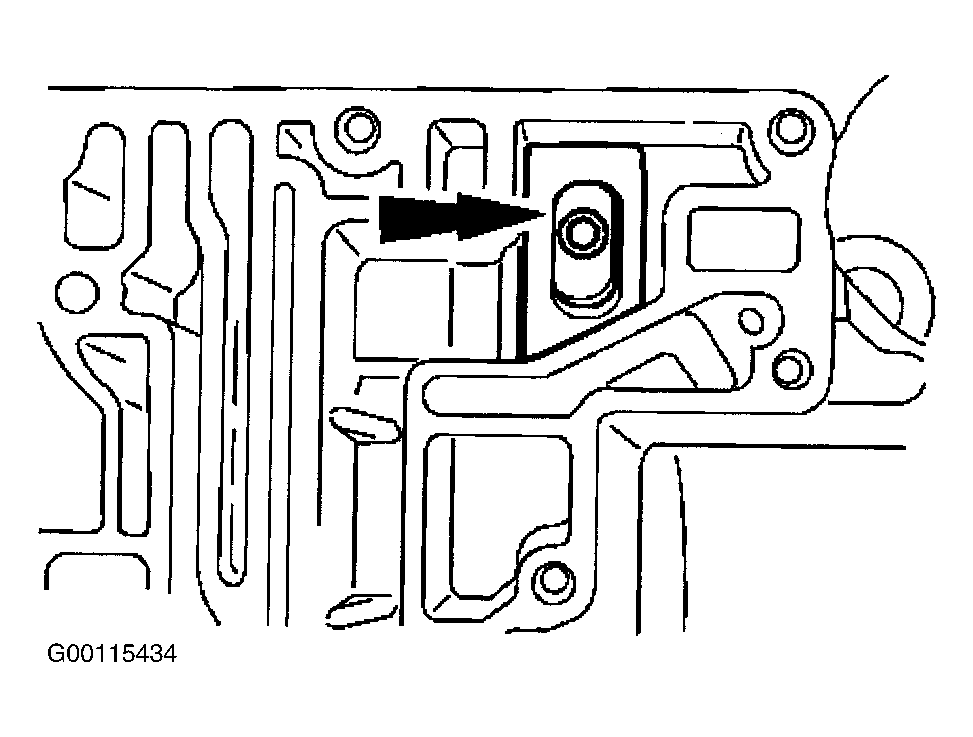

- Remove the manual control valve detent lever spring (2). Remove the 24 valve body-to-case bolts See Fig 1. Remove the valve body and discard the pump outlet screen. See Fig 2.
