Extension Housing Seal (4R70W): Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Lincoln Navigator, 2003 Lincoln Blackwood, 2003 Ford RV Cutaway, 2003 Ford Pickup, and 2003 Ford F550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

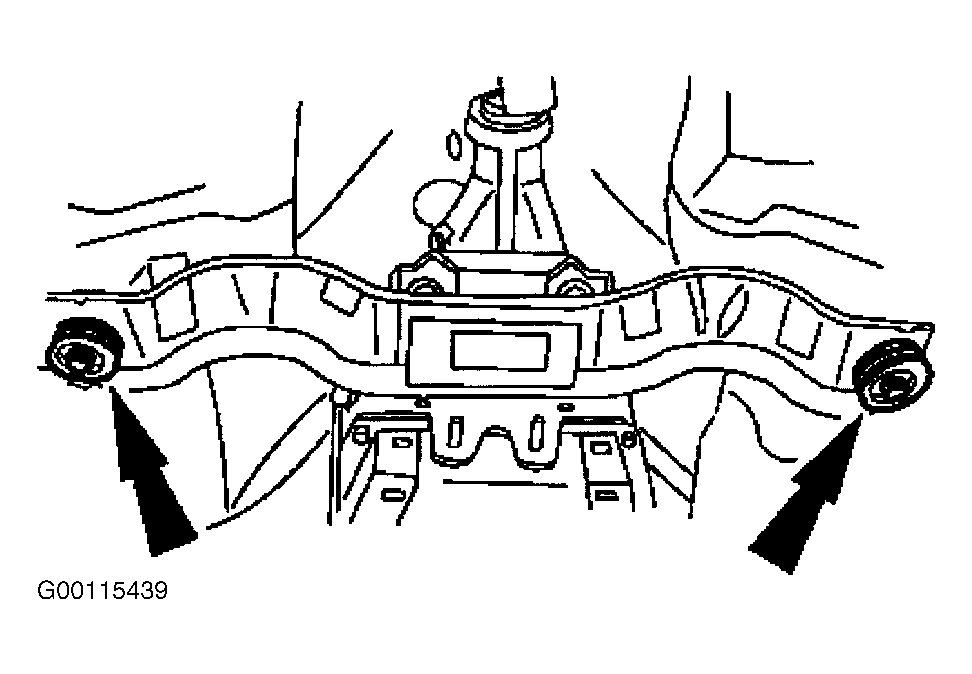

  1. Using the Seal Installer (308-002), install a new extension housing seal. See Fig 1. Raise and position the transmission. Position the transmission crossmember and install bolts. See Figure. See TORQUE SPECIFICATIONS .
  2. Remove the high-lift transmission jack. Install the 2 transmission mount nuts and tighten to specification. See Figure. See TORQUE SPECIFICATIONS . Install the driveshaft. See appropriate DRIVESHAFTS & UNIVERSAL JOINTS article in DRIVELINE/AXLES. Align the index marks and position the driveshaft on the transmission. See Figure.
  3. Install the 4 retaining bolts and tighten to specification. See TORQUE SPECIFICATIONS . Install the transmission fluid pan. Fill the transmission with appropriate fluid to proper level and check for correct transmission operation. See LUBRICATION .
Fig 1: Installing Extension Housing Seal
G00115443Courtesy of FORD MOTOR CO.
