Extension Housing Gasket: Removal

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Lincoln Navigator, 2003 Lincoln Blackwood, 2003 Ford RV Cutaway, 2003 Ford Pickup, and 2003 Ford F550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For 4WD vehicles, transfer case must be removed. See appropriate REMOVAL & INSTALLATION article in TRANSFER CASES.
  1. Raise and support vehicle. Drain transmission fluid. See DRAINING & REFILLING  under LUBRICATION.
  2. Mark driveshaft yoke and axle companion flange for reassembly reference. See Fig 1. Slide drive shaft rearward and remove driveshaft. Disconnect the Output Shaft Speed (OSS) sensor. See Fig 2.
  3. Remove exhaust system components as necessary for access. Position transmission jack under transmission, and remove transmission mount-to-crossmember bolts. Remove transmission mount-to-transmission retaining bolts.
  4. Remove extension housing bolts. See Fig 3. Slide housing off of output shaft. Remove extension housing and discard gasket.
Fig 1: View Of Driveshaft Mark
G00115395Courtesy of FORD MOTOR CO.

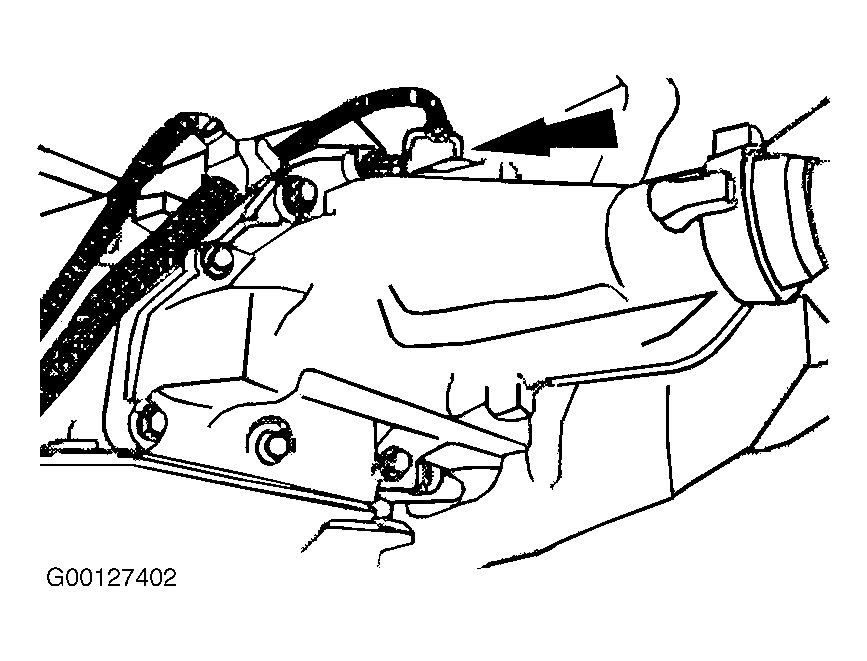

Fig 2: Locating Output Shaft Speed Sensor Harness Connector
G00127402Courtesy of FORD MOTOR CO.
Fig 3: Removing & Installing Extension Housing
G00115442Courtesy of FORD MOTOR CO.
