1-2 Accumulator Piston: Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Lincoln Navigator, 2003 Lincoln Blackwood, 2003 Ford RV Cutaway, 2003 Ford Pickup, and 2003 Ford F550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

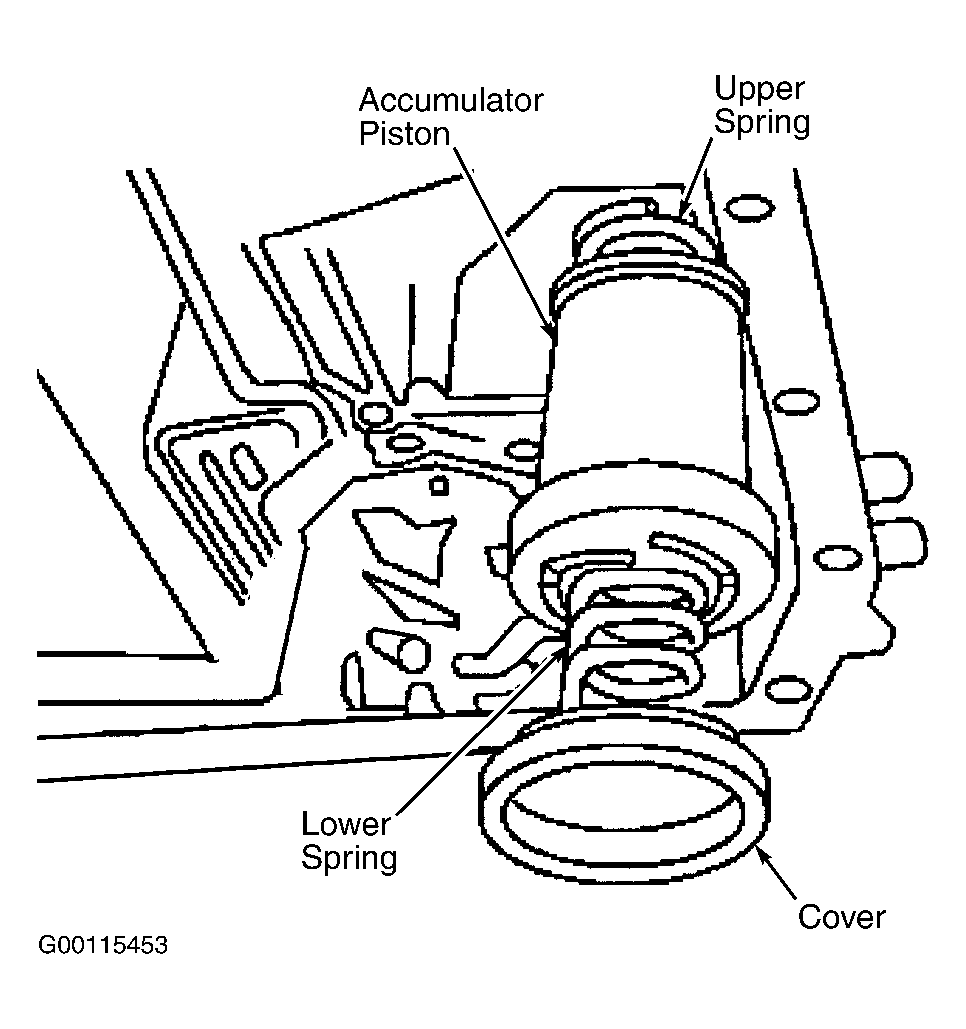

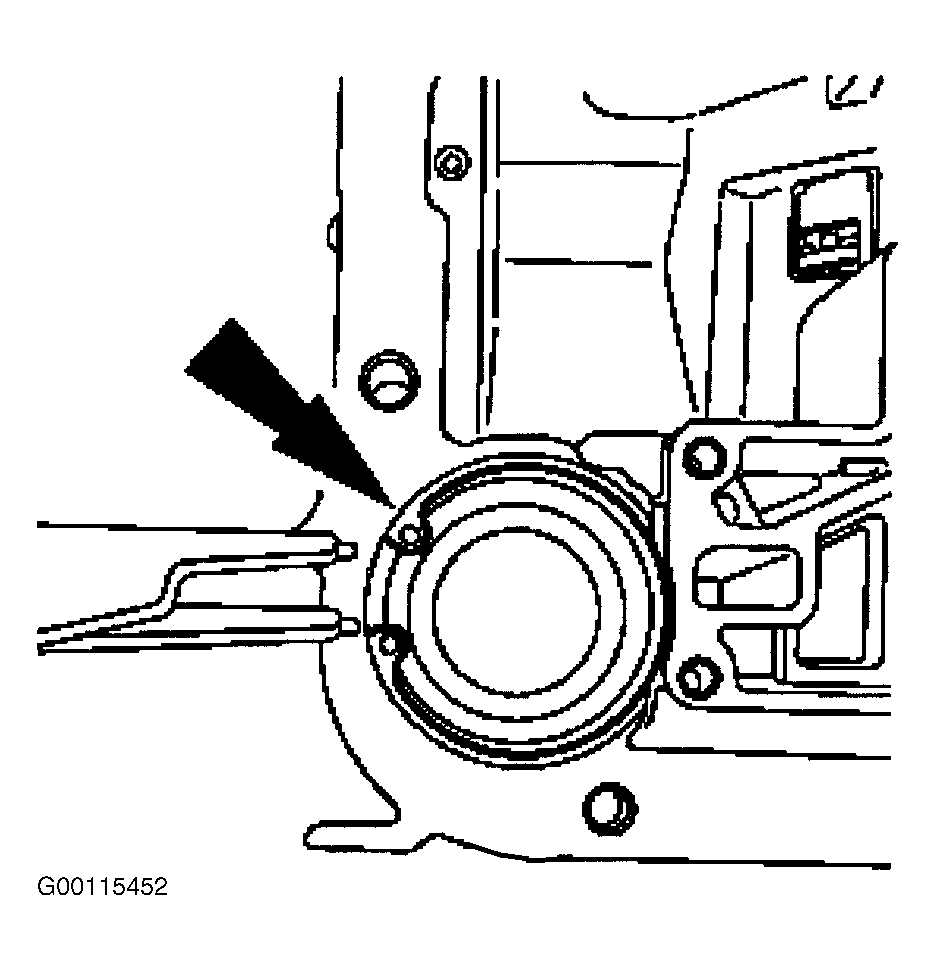

Install the 1-2 accumulator. See Figure. Install the 1-2 accumulator upper spring. Install the accumulator piston. Install the 1-2 accumulator lower spring. Install the cover and seal assembly. Compress the accumulator and install the accumulator piston retaining ring. See Figure.
