Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

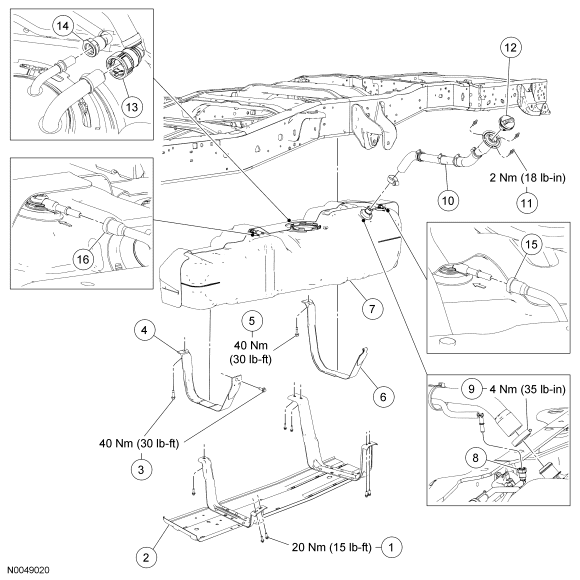

| Item | Part Number | Description |
|---|---|---|
| 1 | W506424 | Fuel tank shield bolts (7 required) |
| 2 | 9A147 | Fuel tank shield |
| 3 | W506435-S439 | Front fuel tank strap bolts (2 required) |
| 4 | 9054 | Front fuel tank strap |
| 5 | W506435-S439 | Rear fuel tank strap bolt |
| 6 | 9054 | Rear fuel tank strap |
| 7 | 9002 | Midship fuel tank |
| 8 | - | Fuel filler pipe vent tube quick connect fitting |
| 9 | W711088-S300 | Fuel filler pipe hose clamp |
| 10 | 9034 | Fuel tank filler pipe |
| 11 | W709654 | Fuel tank filler pipe retaining screws (3 required) |
| 12 | 9030 | Fuel tank filler cap |
| 13 | - | Fuel vapor tube quick connect coupling (part of 9S278) |
| 14 | - | Fuel supply tube quick connect coupling (part of 9S278) |
| 15 | - | Fuel vapor tube quick connect coupling (part of 9S278) |
| 16 | - | Fuel vapor tube quick connect coupling (part of 9S278) |

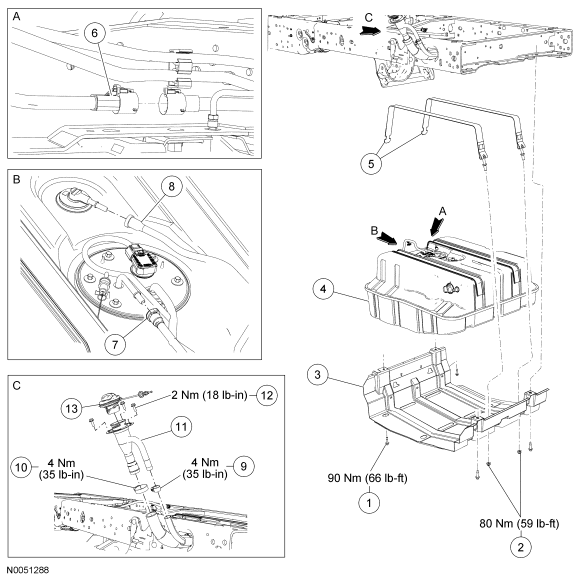

| Item | Part Number | Description |
|---|---|---|
| 1 | N803892-S102 | Fuel tank cover bolts (4 required) |
| 2 | W520104-S439 | Fuel tank strap nuts (2 required) |
| 3 | 9A147 | Fuel tank shield |
| 4 | 9002 | Aft-of-axle fuel tank |
| 5 | 9092 | Fuel tank straps |
| 6 | - | Fuel pump module electrical connector (part of 14A464) |
| 7 | - | Fuel supply tube quick connect coupling (part of 9S278) |
| 8 | - | Fuel vapor tube quick connect coupling (part of 9S278) |
| 9 | W711089-S300 | Fuel tank filler pipe vent hose clamp |
| 10 | W711088-S300 | Fuel tank filler pipe hose clamp |
| 11 | 9034 | Fuel tank filler pipe |
| 12 | W709654 | Fuel tank filler pipe retaining screws (3 required) |
| 13 | 9030 | Fuel tank filler cap |

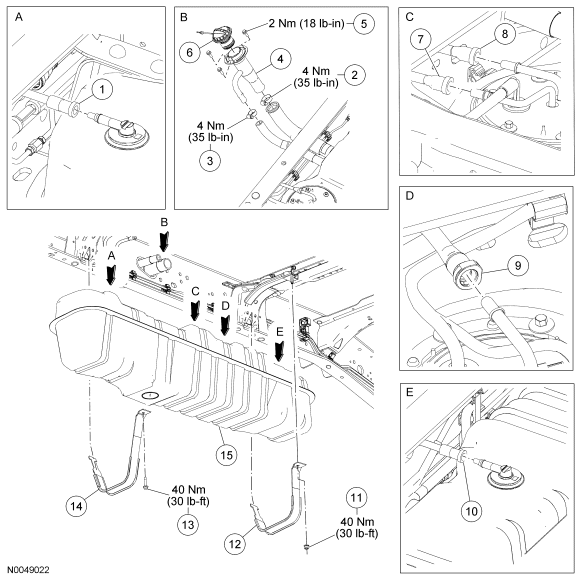

| Item | Part Number | Description |
|---|---|---|
| 1 | 9A228 | Fuel vapor tube quick connect coupling |
| 2 | W711088-S300 | Fuel tank filler pipe hose clamp |
| 3 | W711089-S300 | Fuel tank filler pipe vent hose clamp |
| 4 | 9034 | Fuel tank filler pipe |
| 5 | W709654 | Fuel tank filler pipe retaining screws (3 required) |
| 6 | 9030 | Fuel tank filler cap |
| 7 | - | Fuel return tube quick connect coupling (diesel engines) |
| 8 | - | Fuel supply tube quick connect coupling (diesel engines) |
| 9 | 9P860 | Fuel supply tube quick connect coupling (gasoline engines) |
| 10 | 9P860 | Fuel vapor tube quick connect coupling |
| 11 | W520113-S440 | Fuel tank strap nut |
| 12 | 9054 | Fuel tank strap (front) |
| 13 | W506435-S439 | Fuel tank strap bolt |
| 14 | 9054 | Fuel tank strap (rear) |
| 15 | 9D8563 | Auxiliary fuel tank |
- For additional information, refer to the procedures in this article.
