Engine Ignition Components - Exploded View, 5.4L
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

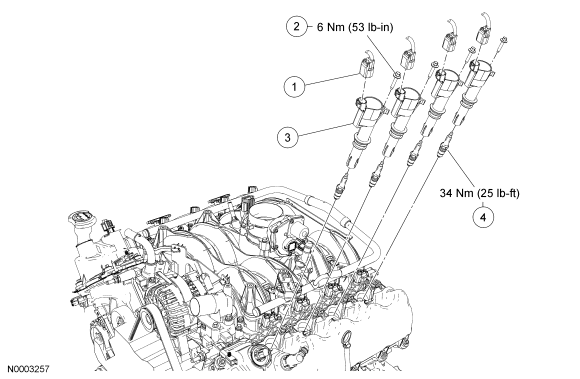

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
RH ignition coil electrical connectors (4 required) (part of 12B637) |
| 2 |
W706175 |
RH ignition coil retaining bolts (4 required) |
| 3 |
12A366 |
RH ignition coils (4 required) |
| 4 |
12405 |
RH spark plugs (4 required) |

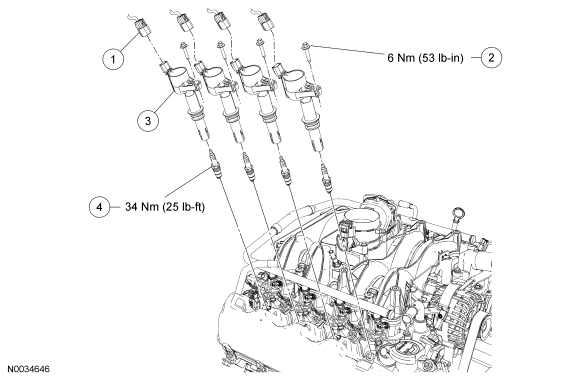

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
LH ignition coil electrical connectors (4 required) (part of 12B637) |
| 2 |
W706175 |
LH ignition coil retaining bolts (4 required) |
| 3 |
12A366 |
LH ignition coils (4 required) |
| 4 |
12405 |
LH spark plugs (4 required) |
- For additional information, refer to the procedures in this article.
