Evaporative Emission (EVAP) System Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

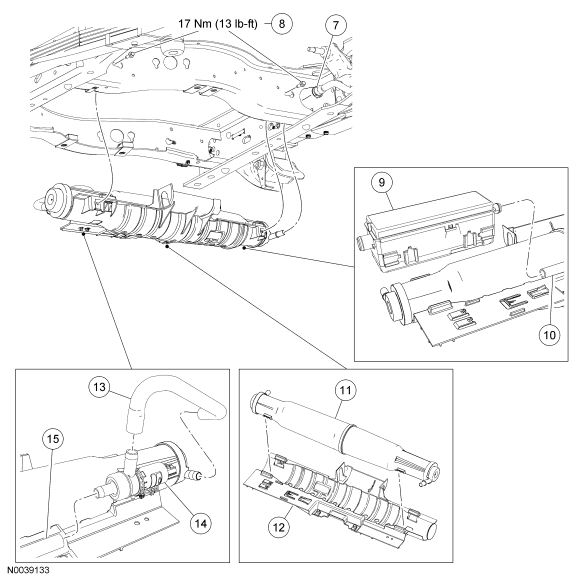

Fig 1: Exploded View Of Evaporative Emission (EVAP) System Components With Specificaitons (Midship Fuel Tank Equipped Vehicles) (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Evaporative emissions (EVAP) canister vent solenoid electrical connector (part of 14405) |
| 2 | - | EVAP canister vent solenoid electrical harness retainer |
| 3 | 1A433 | Spare tire carrier extension tube |
| 4 | W500024 | EVAP canister assembly bracket bolts (2 required) |
| 5 | W506451 | Spare tire carrier assembly bracket bolts (2 required) |
| 6 | W506451 | Spare tire carrier assembly bracket bolts (2 required) |

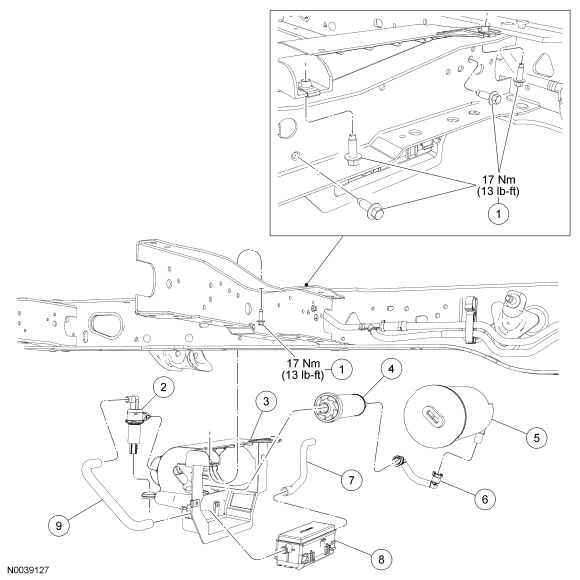

Fig 2: Exploded View Of Evaporative Emission (EVAP) System Components With Specifications (Midship Fuel Tank Equipped Vehicles) (2 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 7 | 9C047 | Fuel vapor tube-to-evaporative emissions (EVAP) canister quick connect fitting |
| 8 | W500024 | EVAP canister assembly bracket bolts (2 required) |
| 9 | - | EVAP dust separator |
| 10 | - | EVAP canister vent solenoid-to-EVAP dust separator hose |
| 11 | 9D653 | EVAP canister assembly (primary and bleed) |
| 12 | - | EVAP canister assembly bracket |
| 13 | - | EVAP canister vent solenoid-to-EVAP canister hose |
| 14 | 9F945 | EVAP canister vent solenoid |
| 15 | - | EVAP dust separator-to-EVAP canister vent solenoid hose |

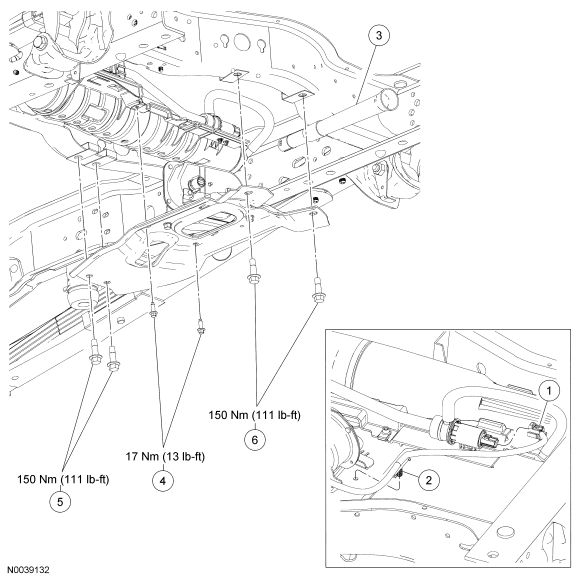

Fig 3: Exploded View Of Evaporative Emission (EVAP) System Components With Specifications (Aft-of-Axle Fuel Tank Equipped Vehicles) (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 9C047 | Fuel vapor tube-to-evaporative emissions (EVAP) canister quick connect fitting |
| 2 | - | EVAP canister vent solenoid electrical connector (part of 14405) |
| 3 | W500024 | EVAP canister assembly bracket bolts (4 required) |

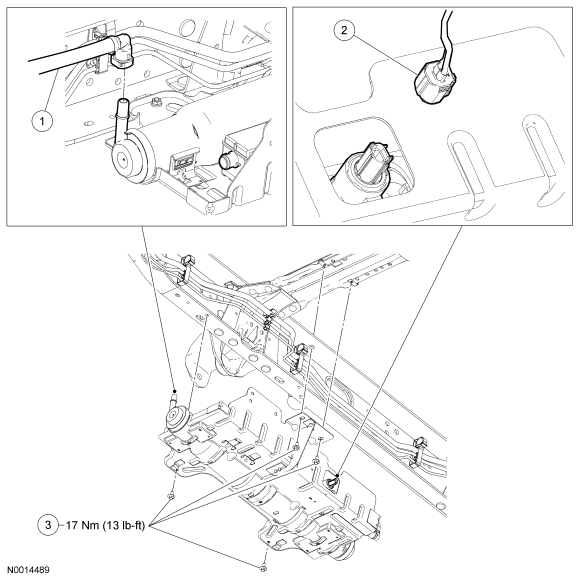

Fig 4: Exploded View Of Evaporative Emission (EVAP) System Components With Specifications (Aft-of-Axle Fuel Tank Equipped Vehicles) (2 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 4 | - | EVAP dust separator |
| 5 | - | EVAP dust separator-to-EVAP canister vent solenoid hose |
| 6 | 9F945 | EVAP canister vent solenoid |
| 7 | 9G723 | EVAP filter assembly |
| 8 | - | EVAP filter assembly-to-EVAP canister tube |
| 9 | 9D653 | EVAP canister assembly (primary and bleed) |
| 10 | - | EVAP canister assembly bracket |
NOTE:
Some vehicles come equipped with a steel fuel tank that is mounted midship. This fuel tank is referred to as an auxiliary fuel tank.

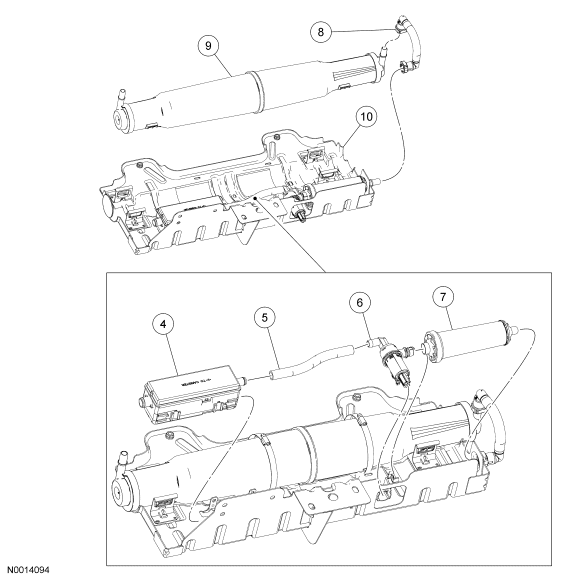

Fig 5: Exploded View Of Evaporative Emission (EVAP) System Components With Specifications (Auxiliary Fuel Tank Equipped Vehicles)
| Item | Part Number | Description |
|---|---|---|
| 1 | W500024 | EVAP canister assembly bracket bolts (4 required) |
| 2 | 9F945 | EVAP canister vent solenoid |
| 3 | 9D665 | EVAP canister assembly bracket |
| 4 | 9G723 | EVAP filter assembly |
| 5 | 9C985 | EVAP canister assembly |
| 6 | 9K318 | EVAP filter assembly-to-EVAP canister tube |
| 7 | 9K324 | EVAP dust separator hose |
| 8 | 9B328 | EVAP dust separator |
| 9 | 9K324 | EVAP dust separator-to-EVAP canister vent solenoid hose |
- For additional information, refer to the procedures in this article.
