Positive Crankcase Ventilation (PCV) Heater Element - 5.4L: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

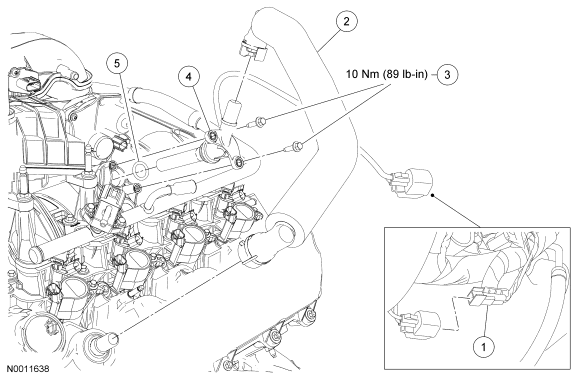

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Positive crankcase ventilation (PCV) heater element electrical connector (part of 12B637) |
| 2 | 6K817 | PCV tube |
| 3 | W701724 | PCV heater element bolts (2 required) |
| 4 | 9F695 | PCV heater element |
| 5 | 9K540 | PCV heater element O-ring seal |
