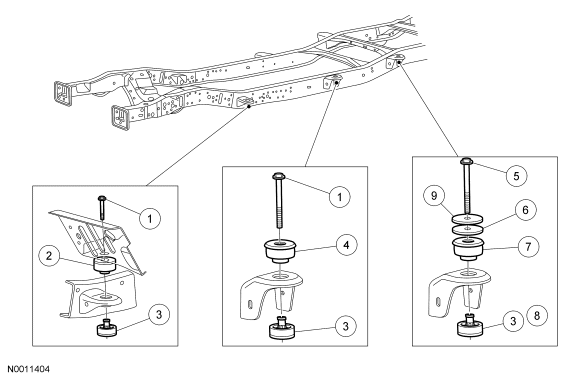

Frame And Body Mounting - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 711305-S439 | Bolt - driver side, front and mid positions |
| 1 | 711306-S439 | Bolt - passenger side, front and mid positions |
| 2 | 1000192 | Body insulator - upper (blue) |
| 3 | 1000193 | Body insulator - lower |
| 4 | 1000192 | Body insulator - upper (brown) |
| 5 | W710832-S439 | Bolt - driver side, rear position |
| 5 | W710831-S439 | Bolt - passenger side, rear position |
| 6 | 1000145 | Shim (quantity as required) |
| 7 | 1000192 | Body insulator - upper (no stripe) |
| 8 | 1000193 | Body insulator, lower (no stripe) |
| 9 | W705721-S301 | Washer - driver side, rear position only |
- For additional information, refer to the procedures in this article.
