Removal & Installation: Transaxle: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

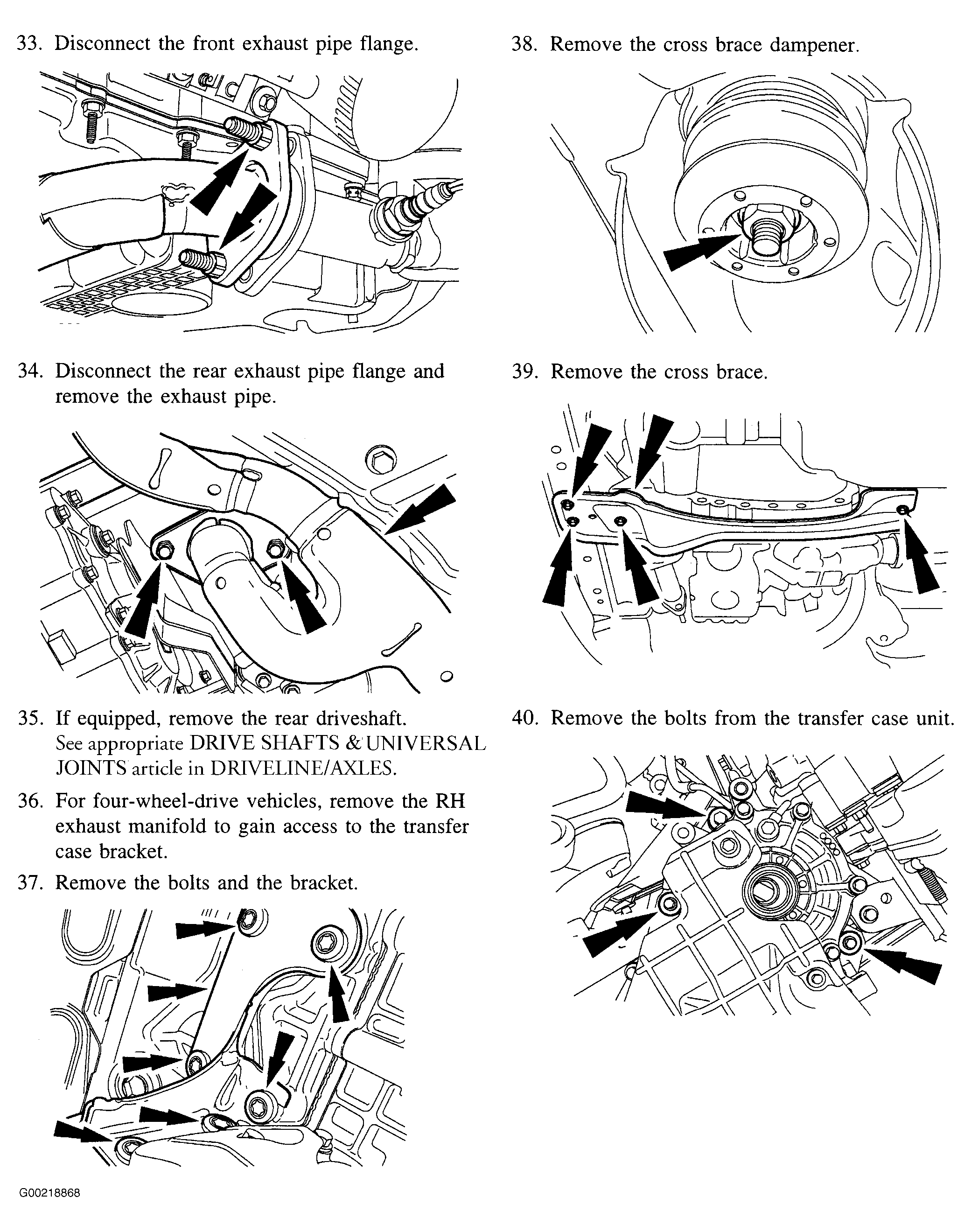

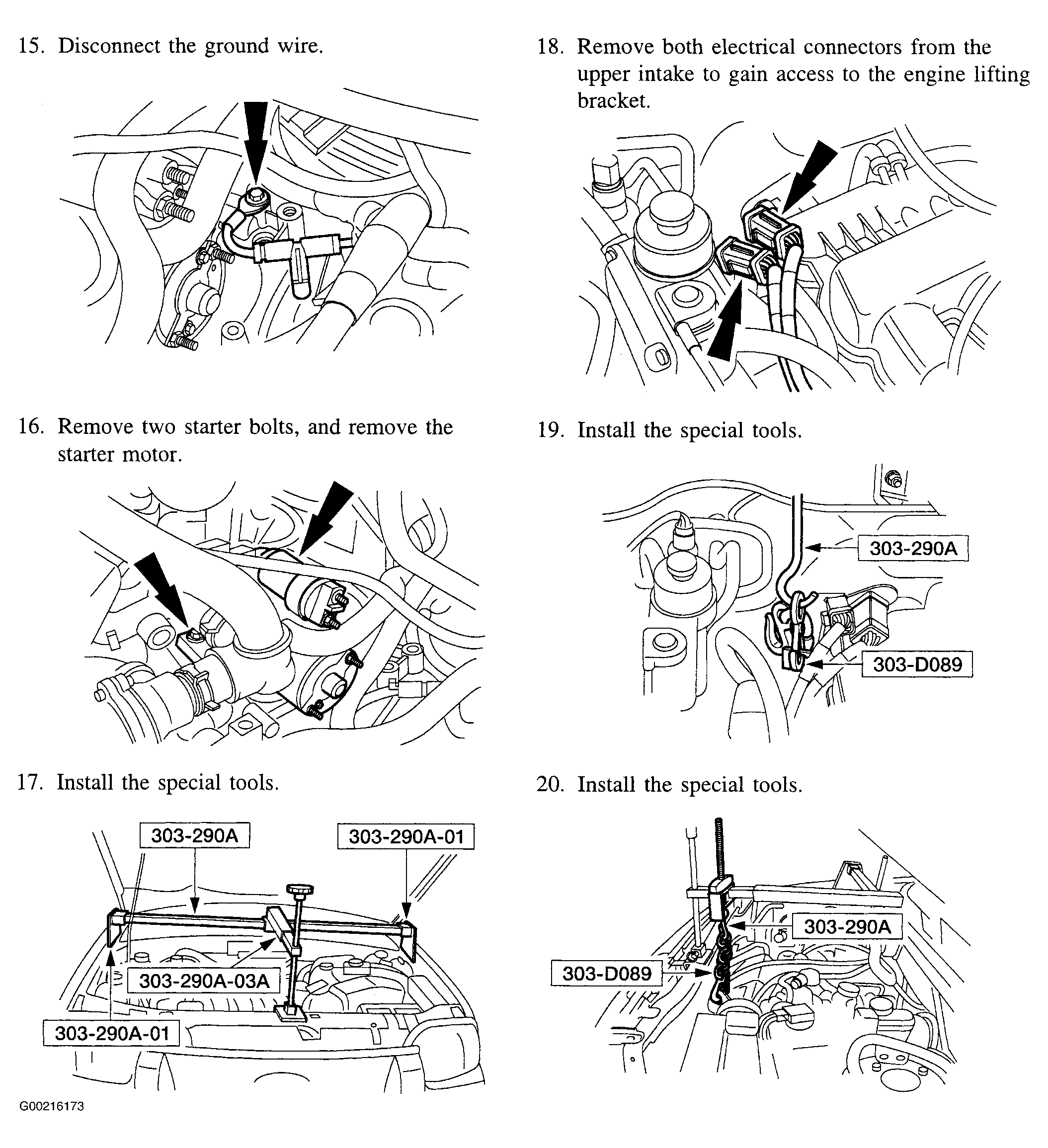

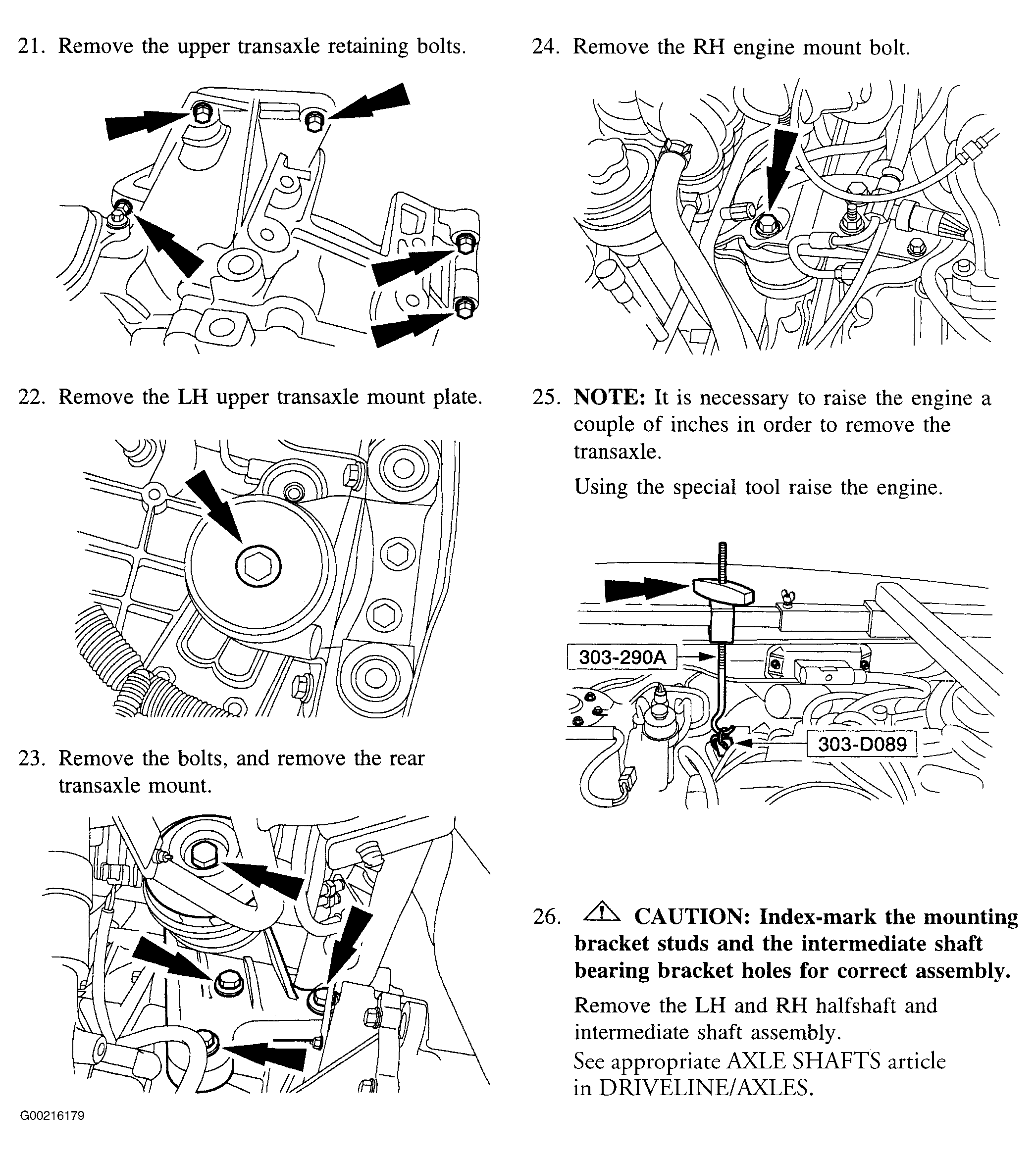

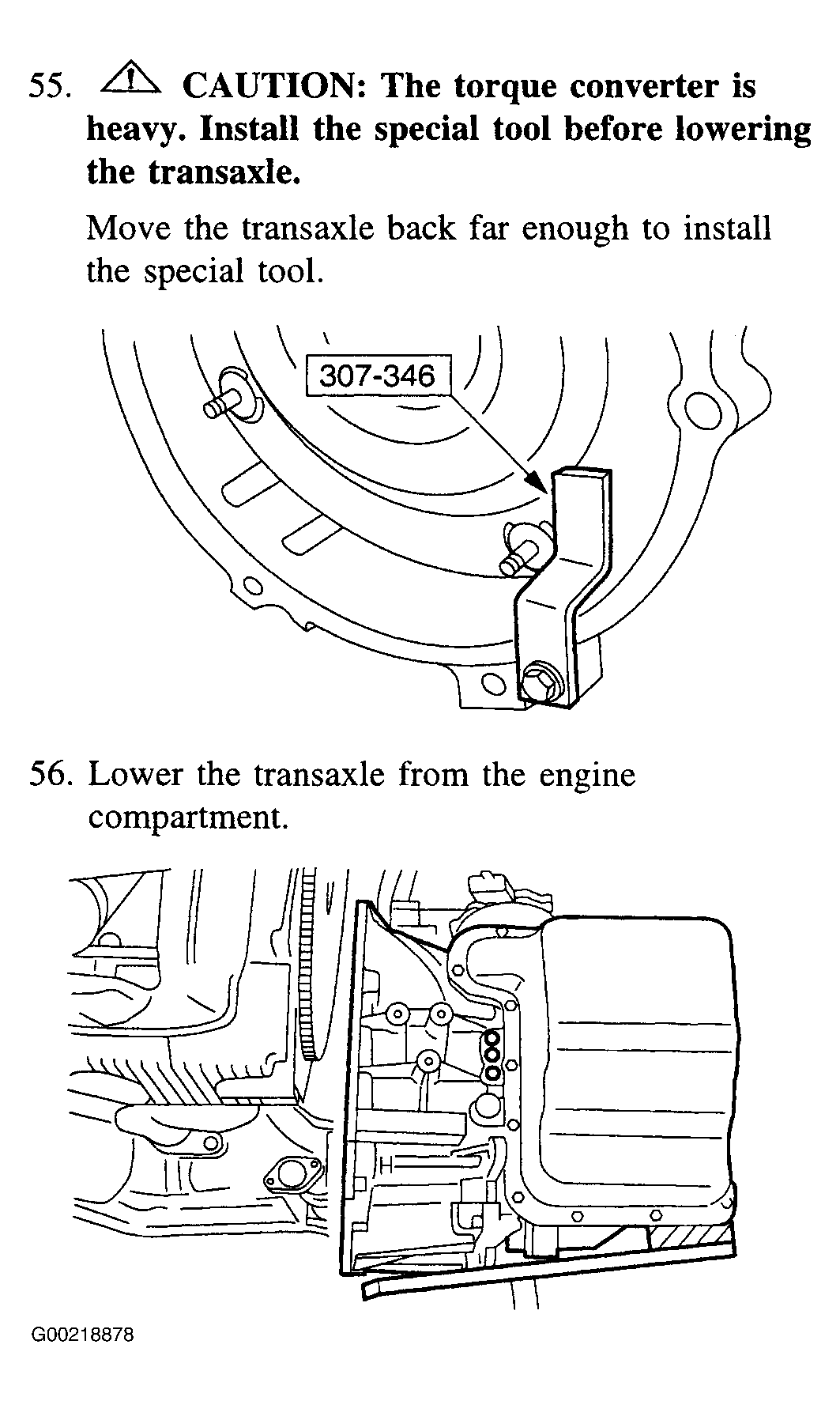

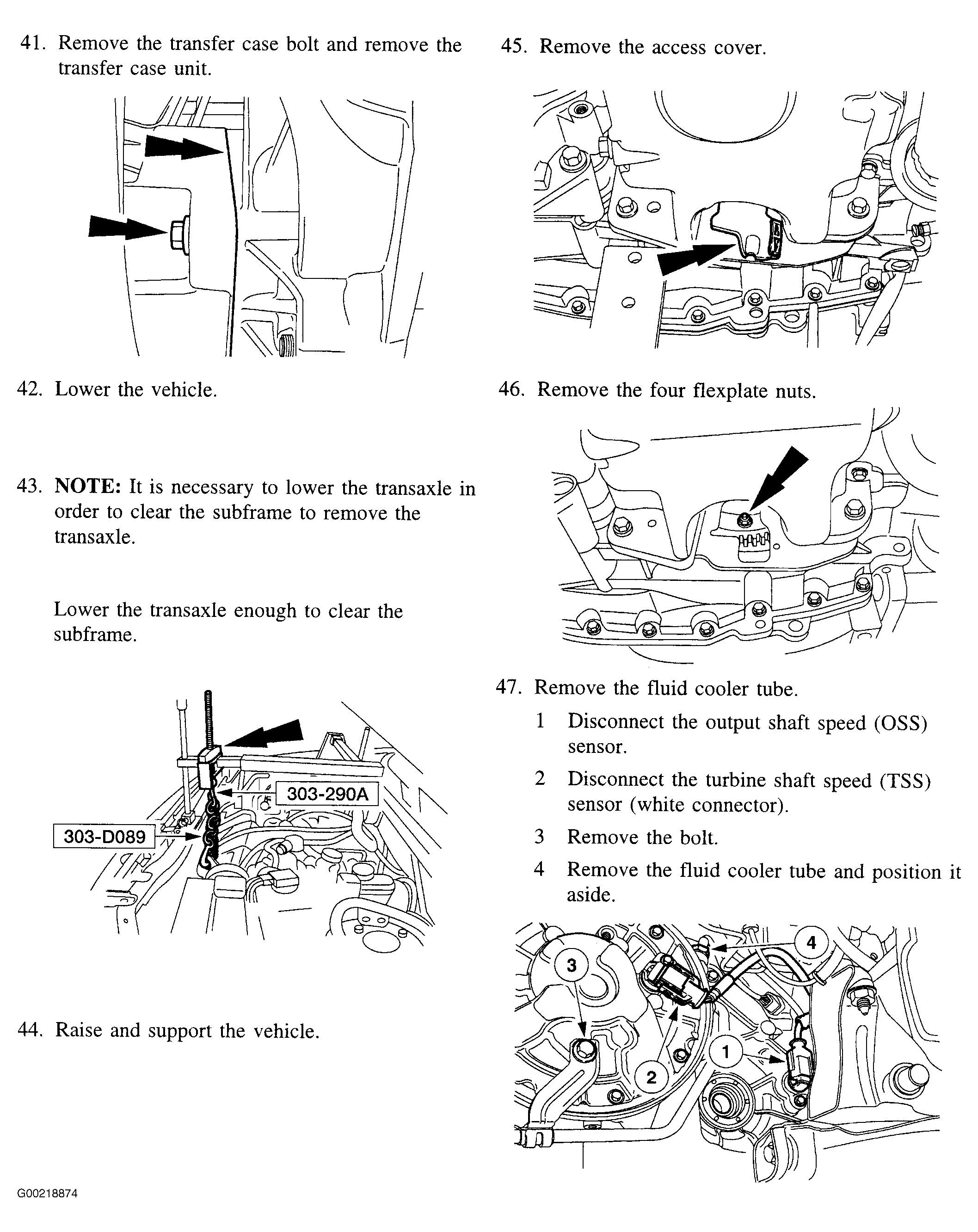

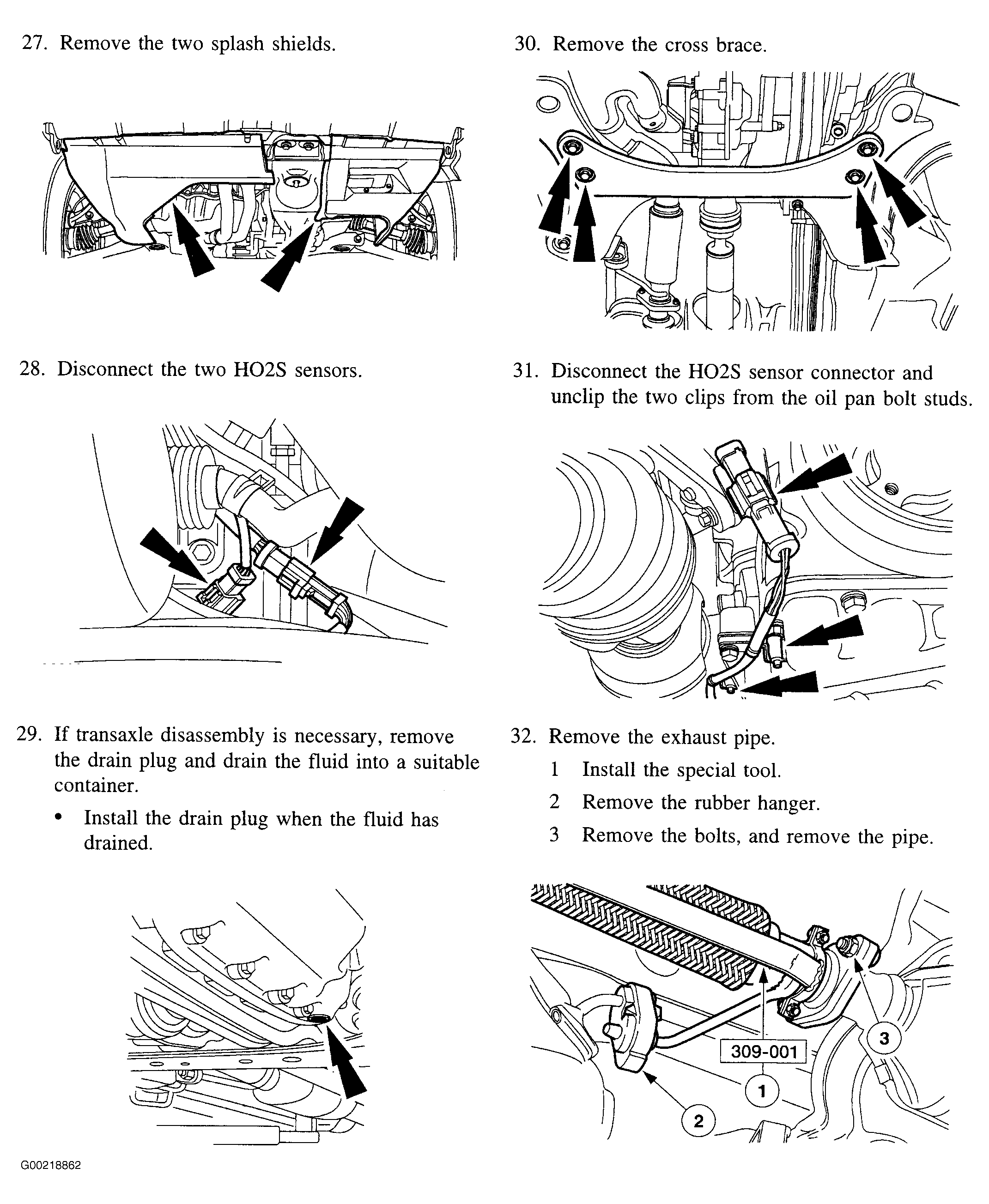

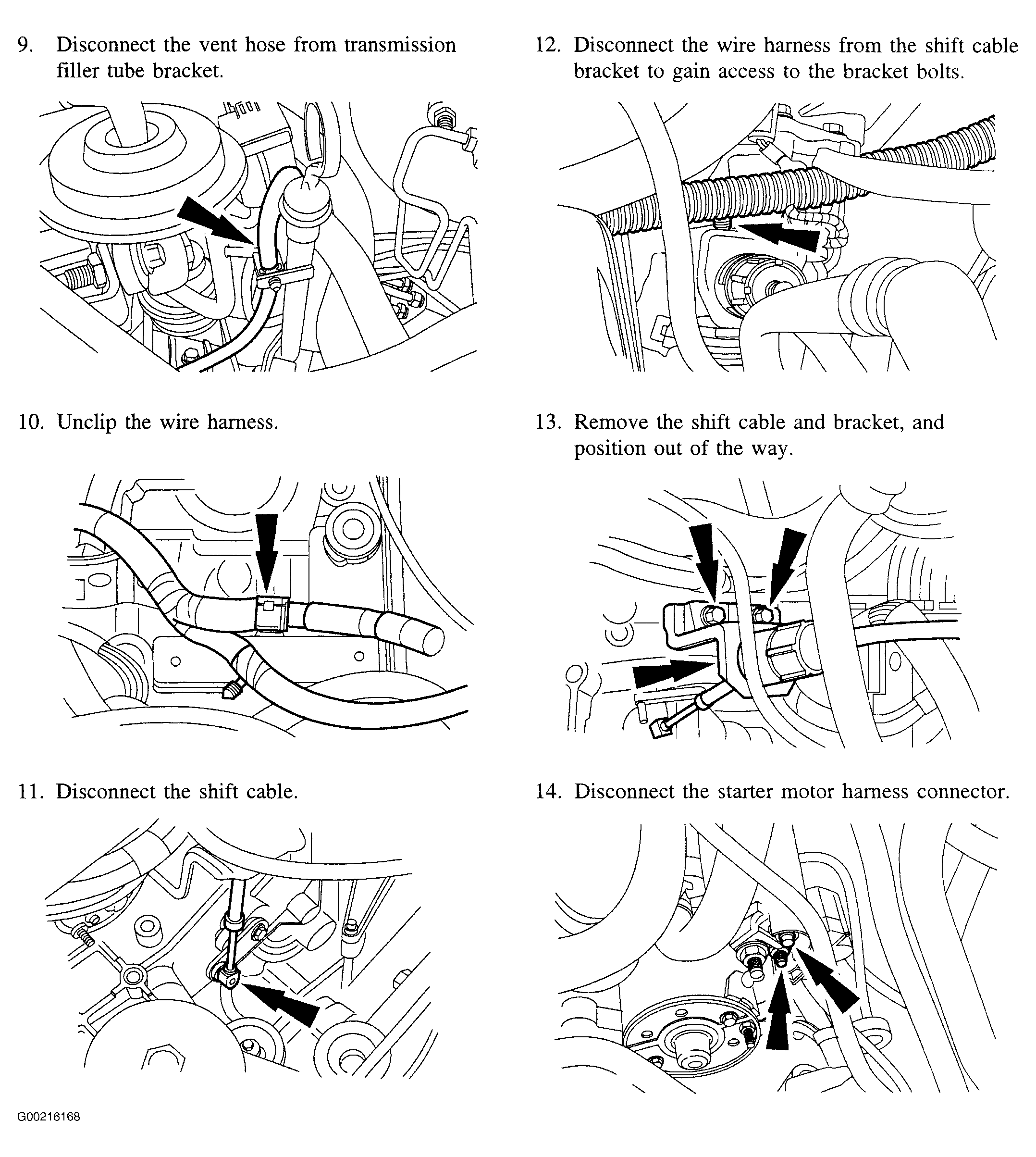

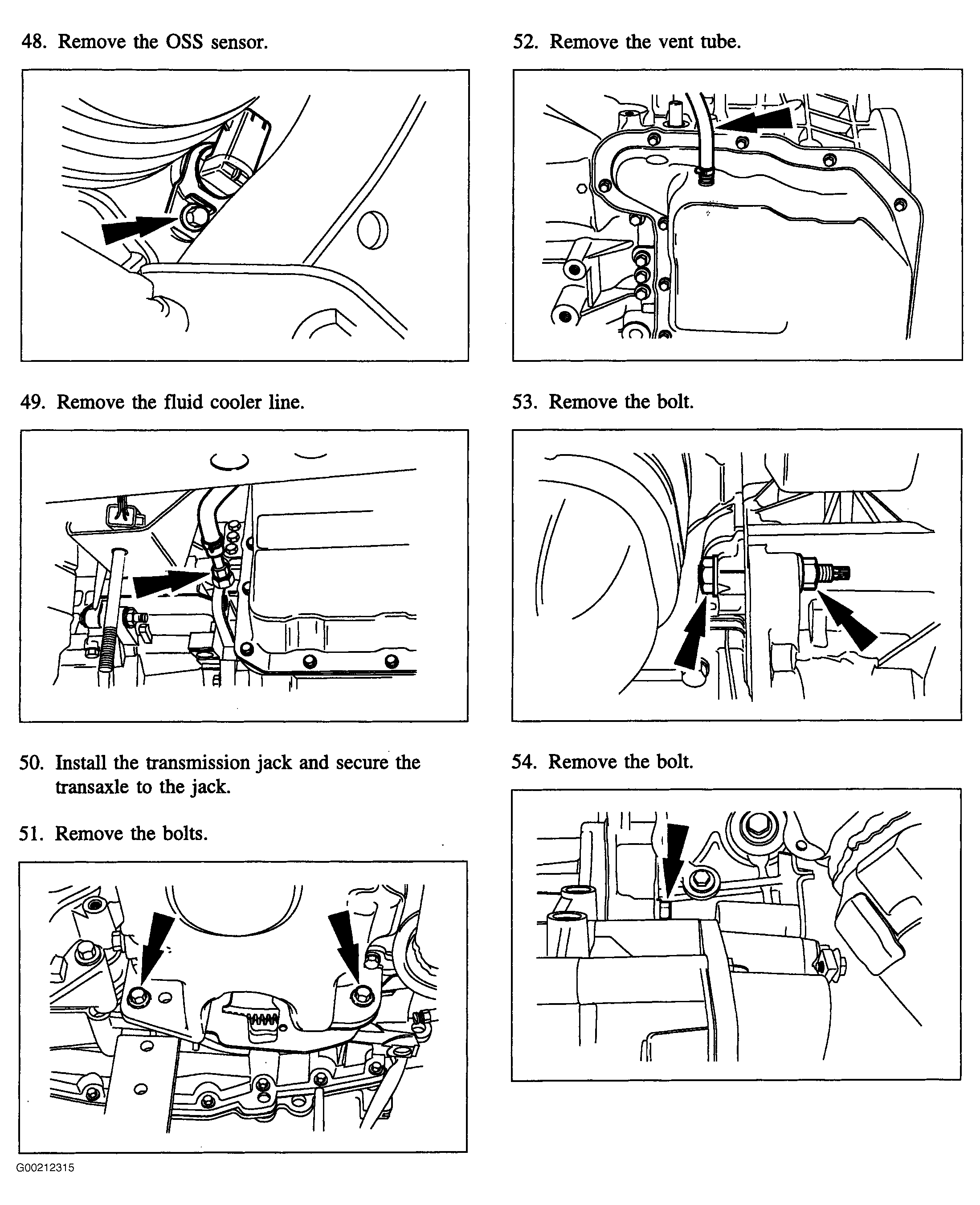

For removal of transaxle from the vehicle, see Fig 1 -Fig 10 .

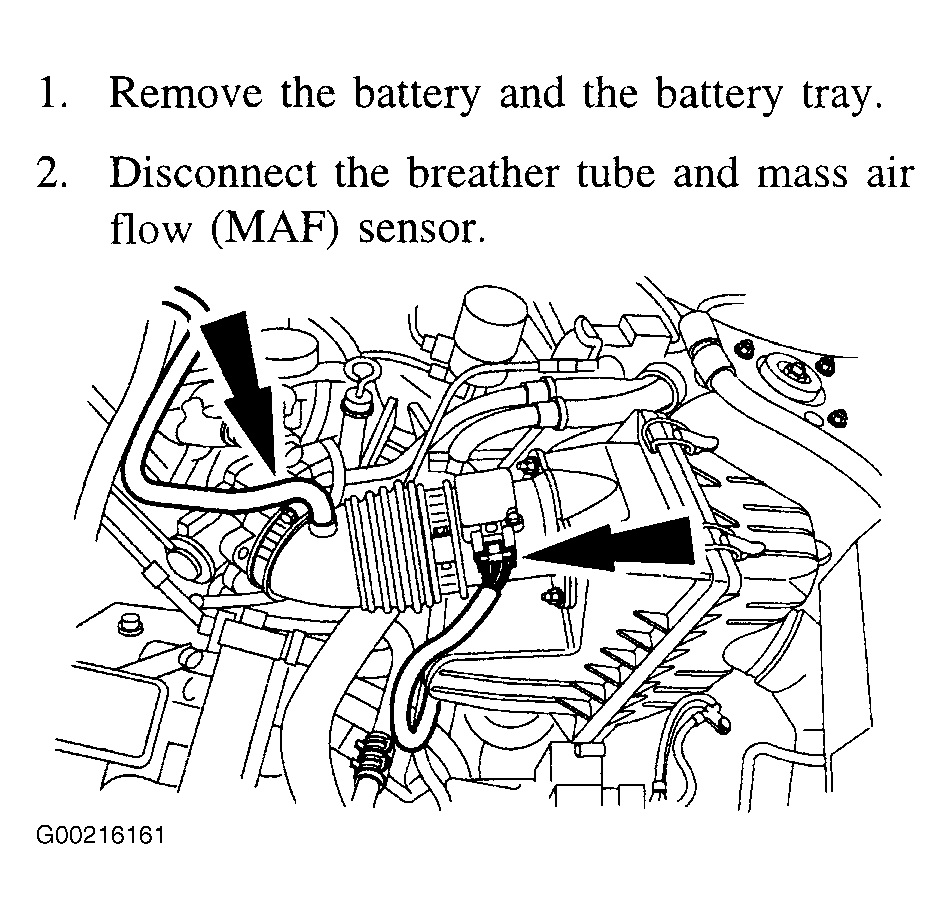

Fig 1: Removing Transaxle (1 Of 10)

Courtesy of FORD MOTOR CO.

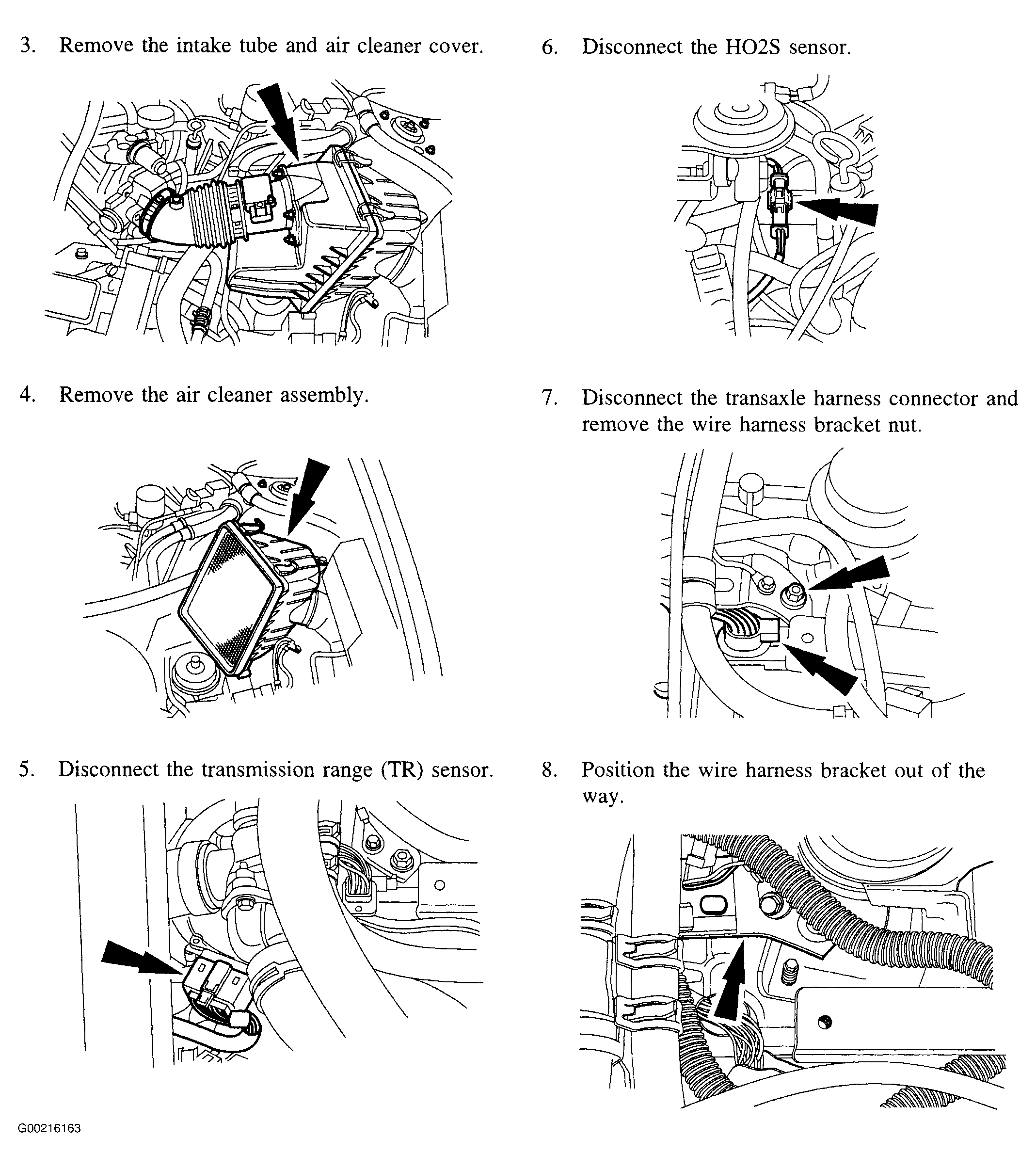

Fig 2: Removing Transaxle (2 Of 10)

Courtesy of FORD MOTOR CO.

Fig 3: Removing Transaxle (3 Of 10)

Courtesy of FORD MOTOR CO.

Fig 4: Removing Transaxle (4 Of 10)

Courtesy of FORD MOTOR CO.

Fig 5: Removing Transaxle (5 Of 10)

Courtesy of FORD MOTOR CO.

Fig 6: Removing Transaxle (6 Of 10)

Courtesy of FORD MOTOR CO.

Fig 7: Removing Transaxle (7 Of 10)

Courtesy of FORD MOTOR CO.

Fig 8: Removing Transaxle (8 Of 10)

Courtesy of FORD MOTOR CO.

Fig 9: Removing Transaxle (9 Of 10)

Courtesy of FORD MOTOR CO.

Fig 10: Removing Transaxle (10 Of 10)

Courtesy of FORD MOTOR CO.
