Instrument Cluster (IC): Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

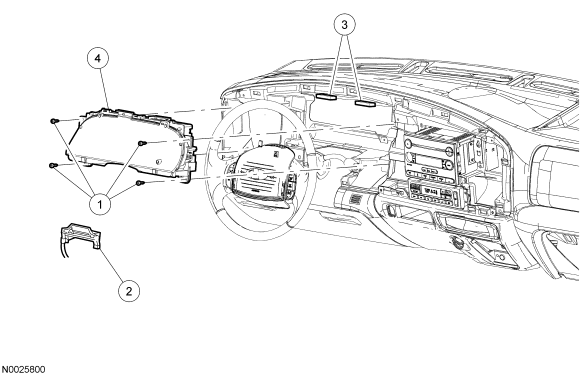

Fig 1: Exploded View Of Instrument Cluster (IC)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807122	Instrument cluster screws (4 required)
2	7B053	Transmission range indicator (if equipped)
3	-	Instrument cluster electrical connectors (2 required) (part of 14401)
4	10849	Instrument cluster
