Wheel Speed Sensor - Front, Four Wheel Drive (4WD): Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

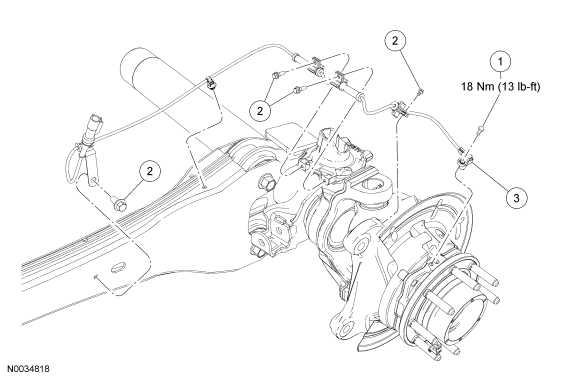

Fig 1: Identifying Wheel Speed Sensor With Specifications - Front, Four Wheel Drive (4WD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor bolt
2	9XB04	Wheel speed sensor harness retainers (4 required)
3	2C204	Wheel speed sensor
