Hydraulic Control Unit (HCU): Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |

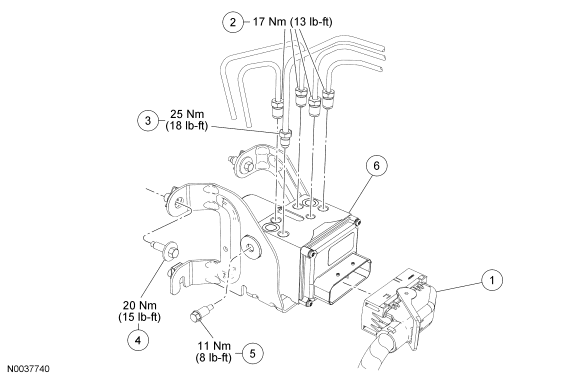

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module electrical connector |
| 2 | - | Hydraulic brake line fittings (M10) |
| 3 | - | Hydraulic brake line fitting (M12) |
| 4 | W503932 | Hydraulic control unit (HCU) bracket-to-body bolt (3 required) |
| 5 | - | HCU bracket bolt (2 required) |
| 6 | 2C219 | HCU |
