Anti-Lock Brake System (Abs) Module: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

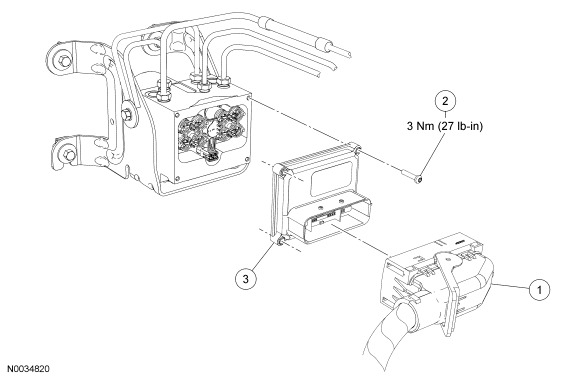

Fig 1: Identifying Anti-Lock Brake System (ABS) Module With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	ABS module screw (4 required)
3	2C219	ABS module
