Vehicle Security Module (VSM): Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

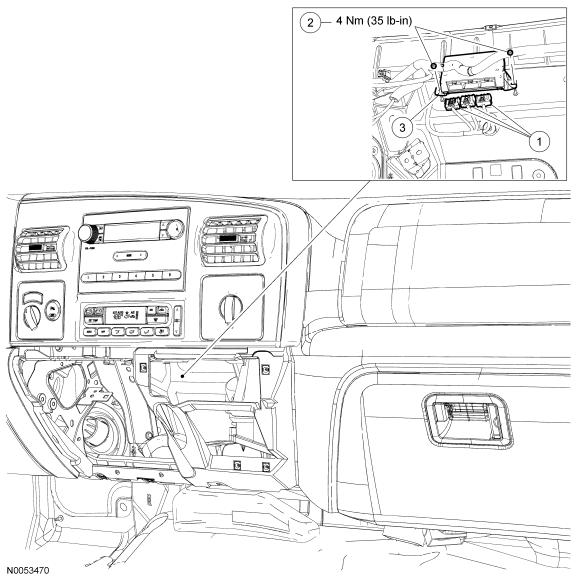

Fig 1: Identifying Vehicle Security Module (VSM) With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Vehicle security module electrical connectors (part of 14A005)
2	N806564-S440	Vehicle security module nuts (2 required)
3	14B207	Vehicle security module
