Upfitter Relay Box: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

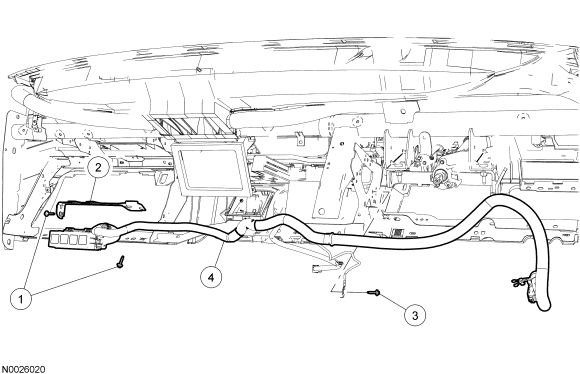

Fig 1: Identifying Upfitter Relay Box

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Upfitter relay bracket bolts (2 required) (part of 14A303)
2	-	Upfitter relay bracket (part of 14A303)
3	-	Upfitter relay harness ground bolt
4	14A303	Upfitter relay harness assembly
