Restraints Control Module (RCM): Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |

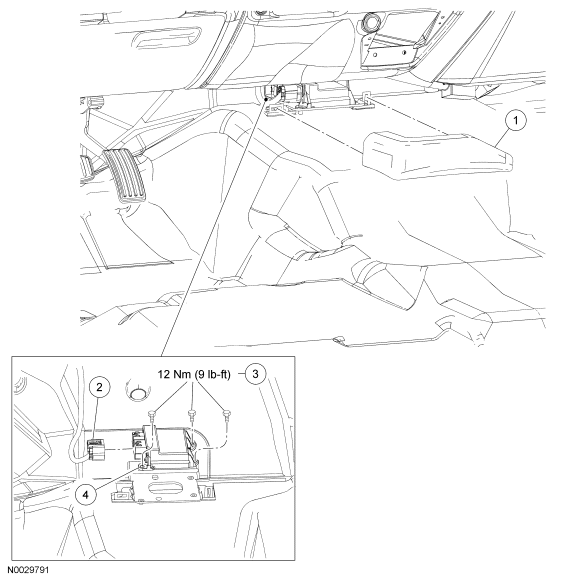

| Item | Part Number | Description |
|---|---|---|
| 1 | 111C92 | Restraint control module (RCM) cover |
| 2 | - | RCM wiring connector (part of 14401) |
| 3 | W707935 | RCM bolts |
| 4 | 14B321 | RCM |
