Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

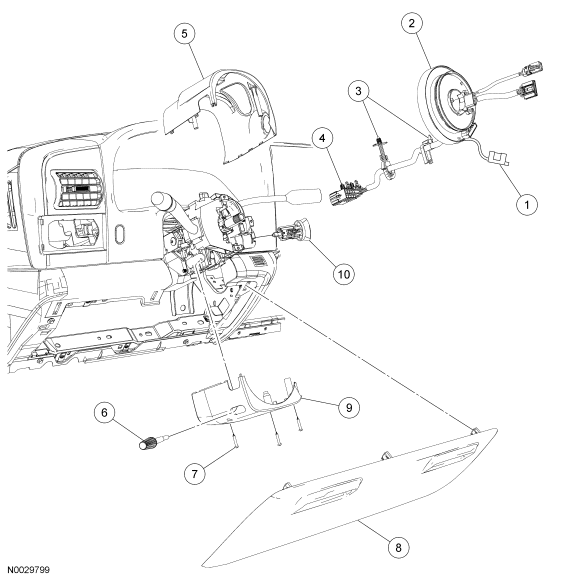

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Key-in-ignition warning indicator switch (part of 14A664) |
| 2 | 14A664 | Clockspring |
| 3 | - | Clockspring wiring retainers (part of 14A664) |
| 4 | - | Clockspring electrical connectors (2 required) (part of 14A664) |
| 5 | 3530 | Upper steering column shroud |
| 6 | 3F609 | Tilt wheel handle and shank |
| 7 | 55929 | Lower steering column shroud screws (3 required) |
| 8 | 04459 | Steering column opening lower finish panel |
| 9 | 3K512 | Lower steering column shroud |
| 10 | 22050 | Ignition switch lock cylinder |
