Battery and Battery Tray - Exploded View, Gasoline

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

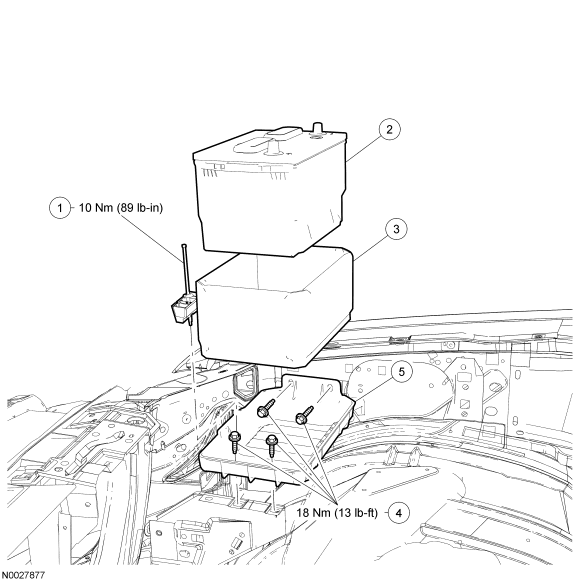

Fig 1: Exploded View Of Battery And Battery Tray With Specifications (Gasoline)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808480	Battery hold down clamp bolt
2	10655	Battery
3	10A682	Battery cover
4	N811479-S439	Battery tray bolts (4 required)
5	10732	Battery tray

For additional information, refer to the procedures in this article.
