Battery Cables - Gasoline: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

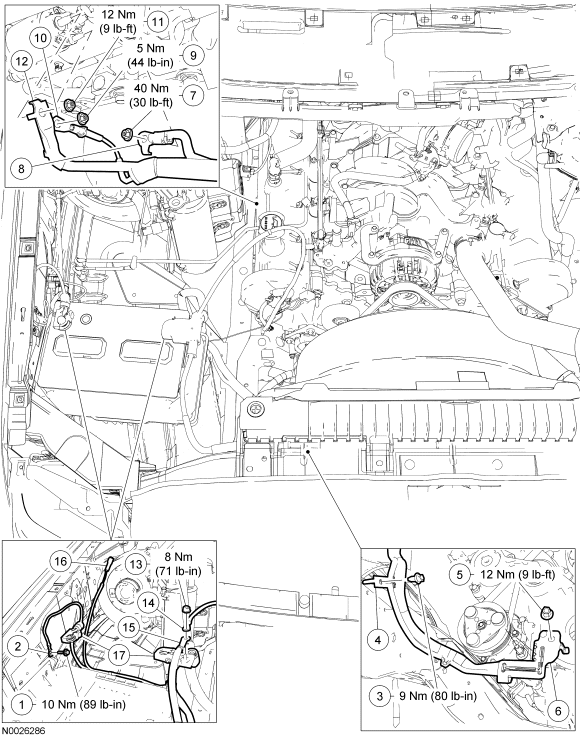

| Item | Part Number | Description |
|---|---|---|
| 1 | W706414 | Battery ground cable terminal screw |
| 2 | - | Battery ground cable terminal (part of 14301) |
| 3 | W707079 | Battery cable harness bracket bolt |
| 4 | - | Battery cable harness bracket |
| 5 | N620482 | Front engine cover battery ground cable bracket nut |
| 6 | - | Front engine cover battery ground cable bracket (part of 14301) |
| 7 | N808084 | Battery ground cable eyelet stud nut |
| 8 | - | Battery ground cable eyelet (part of 14301) |
| 9 | W707142 | Starter solenoid wire terminal nut |
| 10 | - | Starter solenoid wire terminal (part of 14300) |
| 11 | W706414 | Starter solenoid positive cable terminal nut |
| 12 | - | Starter solenoid positive cable terminal (part of 14300) |
| 13 | 381561 | Generator B+ cable terminal nut/central junction box (CJB) cable terminal nut |
| 14 | 14305 | Generator B+ cable terminal |
| 15 | 12A581 | CJB cable terminal |
| 16 | - | Starter relay electrical connector (part of 14300) |
| 17 | 14300 | Battery cables |
