Battery Cables - Diesel: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

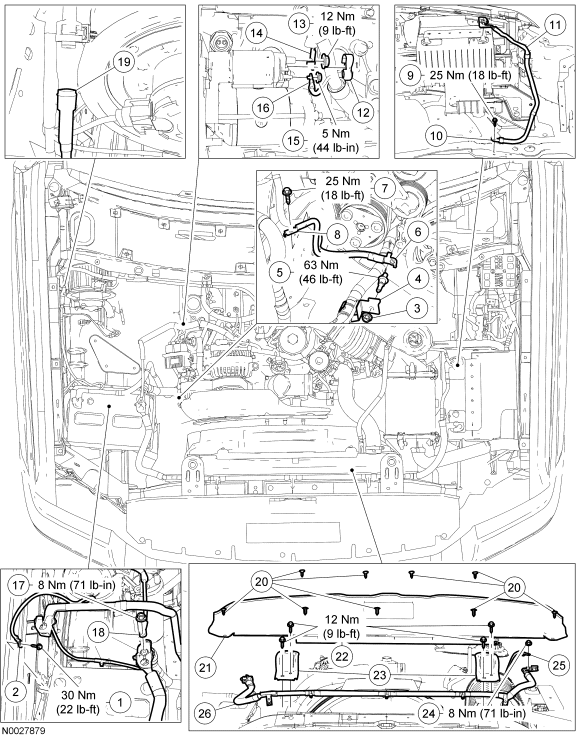

| Item | Part Number | Description |
|---|---|---|
| 1 | W706414 | Battery ground cable terminal screw |
| 2 | - | Battery ground cable terminal |
| 3 | W520113-S441 | Positive battery cable bracket nut |
| 4 | - | Positive battery cable bracket |
| 5 | W704983- S437M | Battery ground cable terminal stud |
| 6 | - | Battery ground cable terminal |
| 7 | W707079 | Battery ground cable-to-frame terminal bolt |
| 8 | - | Battery ground cable-to-frame terminal |
| 9 | W707079 | Auxiliary battery ground cable-to-frame terminal bolt |
| 10 | - | Auxiliary battery ground cable-to-frame terminal |
| 11 | 14301 | Auxiliary negative battery cable |
| 12 | 11N087 | Starter solenoid terminal cover |
| 13 | N802776 | Starter solenoid positive cable terminal nut |
| 14 | - | Starter solenoid positive cable terminal (part of 14300) |
| 15 | W707142 | Starter solenoid wire terminal nut |
| 16 | - | Starter solenoid wire terminal (part of 14300) |
| 17 | 381561 | Generator B+ cable terminal nut |
| 18 | - | Generator B+ cable terminal |
| 19 | - | Starter relay electrical connector (part of 14300) |
| 20 | - | Pin-type retainers (9 required) (part of 8327) |
| 21 | 8327 | Upper radiator air deflector |
| 22 | - | Upper radiator support brackets bolts (4 required) |
| 23 | - | Upper radiator support brackets (2 required) |
| 24 | 381561 | Central junction box (CJB) cable terminal nut |
| 25 | 12A581 | CJB cable terminal |
| 26 | 14300 | Positive battery cable |
